ABOX-5100-V1807

ABOX-5100-V1807

SINTRONES
SKU: 07958800

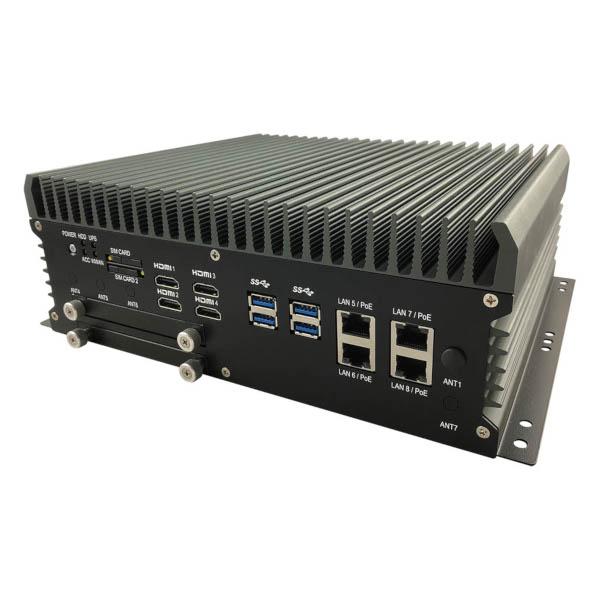

In-Vehicle Fanless Computer with AMD Ryzen V1807B CPU, 4xDP, 8xGbE LAN, 2xCOM, 4xUSB, 2x2.5" SATA HDD/SSD, 1xSATA DOM, 1x M.2, 3xMini PCIe, 2xSIM, 9...48VDC-in
Price on request
Available
Available

Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Desktop, Wall
Type
Fanless
CPU
Processor Installed
AMD Ryzen V1807B
Max CPU frequency
3.8 GHz
Memory
Form-factor
DDR4
Maximum Memory
32 GB
Ethernet
10/100/1000 Mbit/s
8
Interfaces
COM Total
3
RS-232/422/485
3
USB Total
4
USB v3.x
4
Drive interfaces
mSATA
1
Storage Cage
2.5" Cage Intenal
2
Extension Slots
Total
4
M.2
1
Mini-PCIe/Mini Card
3
SIM Card slots
2
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
3xDB9, 4xUSB, Mic In, Line In, Line Out, 4xDisplayPort
System Power Input
Input Voltage DC
9 V
Dimensions and weight
Width
260 mm
Height
95 mm
Depth
226 mm
Operating Conditions
Operating Temperature
-40..70 °C
Vibration
IEC60068-2-64, random, 2.5G@5~500Hz, 1hr/axis with SSD
Shock
Operating: MIL-STD-810G, Method 516.6, Procedure I, Trucks and semi-trailers=15G (11ms) with SSD
Standards and Certifications
Certifications
CE, FCC Class A
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock
Vehicle
E-Mark
Dimensions
Net Weight
3.86 kg
Gross Weight
4.5 kg

Documentation
ABOX-5100-V1807-Datasheet
