Meet NEU - Nexcom Fanless Edge Computing Systems Serie

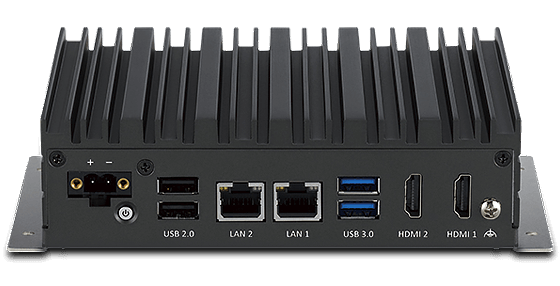

NEU-X101
The Neu-X101 fanless embedded player, powered by an Intel® Apollo Lake processor, is the perfect choice for optimizing information visualization and conveying brand messages, engaging customers, and increasing smart retail management efficiencies. This slim, fanless design offers extended durability and features two independent display outputs, HDMI display, USB 3.0 ports, and a RS232/RS422/RS485 interface. It can be used in endless aisles, QSRs, drive-thru kiosks, bus stops, digital transit information signs, and information stands - as well as being applicable as a gateway for smart city initiatives.
Key Features
- Intel® Apollo Lake J3455 processor
- Slim chassis design
- Support 2 x HDMI 1.4b output
- Support power input 12 VDC
- Fanless design
- 1 x DDR3L up to 8GB, M.2 2242 Key M for storage device
- mini-PCIe slot support Wi-Fi and LTE module
NEU-X101-6C

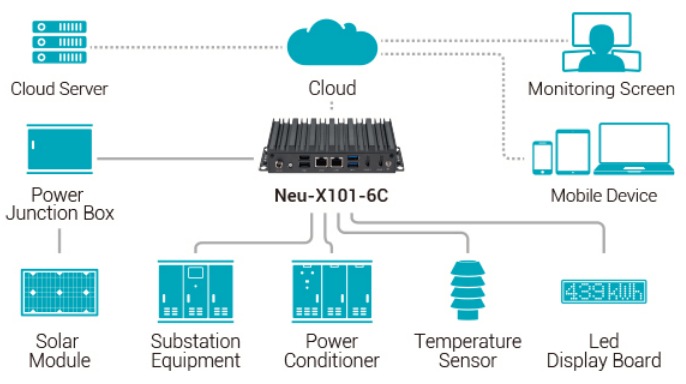

The Neu-X101 industrial-grade embedded computer provides power management systems with a highly reliable computer system with high performance. Additionally, the customized Neu-X101-6C version includes multiple RS-485 ports, allowing our client to capture energy data and provide real-time remote monitoring to optimize and balance energy usage.
Key Features
- Intel® Celeron® J3455 (Apollo Lake) processor
- Slim chassis design
- Support 2 x HDMI 1.4b output
- Support power input 12 VDC
- Fanless design
- 1 x DDR3L up to 8GB, M.2 2242 Key M for storage device
- mini-PCIe slot support Wi-Fi and LTE module
Neu-X300
The Neu-X300 Series is a powerful fanless embedded player, powered by the 8th generation Intel® Core™ processor. It is capable of handling powerful multimedia content, providing stunning visuals for 4K content creation, media playback, and image processing. This high-end player also offers triple HDMI 2.0 displays, USB 3.0 ports, and a RS232 interface to optimize information visualization and convey brand messages. With its slim fanless design and extended durability, the Neu-X300 Series can be used for endless aisles, QSRs, drive-thru kiosks, bus stops, digital transit information signs, and information stands - all while helping to increase in-store traffic and sales through virtual interactions and calls to action.
Key Features
- 8th Gen. Intel® Core™ socket type processor
- 3 x HDMI 2.0 resolution 4K@60Hz
- Storage M.2 2280 Key M
- Support iAMT technology
- Dual DDR4 SO-DIMM up to 32G
- TPM 2.0 IC onboard
- Fanless design

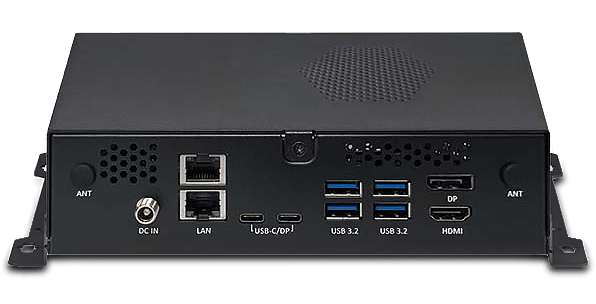

NEU-X303mini
The Neu-X303mini edge computing system is a powerful and compact platform that is capable of handling a wide range of multimedia content. Powered by the 12th Generation Intel® Core™ (Alder Lake–PS) processor, it boasts low power consumption and enhanced graphics performance from Intel® Iris® Xe graphics for stunning 4K visuals. It also has multiple display outputs via HDMI and DP ports, as well as flexible integration with various peripherals such as touchscreen displays, scanners, readers, and more. Furthermore, the Neu-X303mini series has 2 LAN ports, 4 USB ports, and 2 USB Type-C ports to support quick service restaurant drive through kiosks, box office displays, information stands, bus stops, or digital transit information signs. The Neu-X303mini series is an ideal edge computing system for delivering an immersive experience through advertising, hospitality, and brand promotion applications.
Key Features
- 12th Generation Intel® Core™ (Alder Lake - PS) processor SoC
- Four 4K@60Hz display output, DP, HDMI 2.1 and 2 x USB 3.2 Type-C
- Dual 2.5G LAN ports, 4 x USB 3.2 and 2 x USB 3.2 Type-C ports for easy connection
- Onboard M.2 2280 Key M with PCIe signal for storage modules
- Onboard M.2 2230 Key E for optional Wi-Fi modules
- Compact design (L: 183mm, W: 137.9mm, H: 47.9mm)
- 12V DC in
Neu-X300-F65
The Neu-X300-F65 series fan box embedded player is a powerful tool, powered by the Intel® 8/9th Gen Core™ processor. It is capable of handling powerful multimedia content and providing stunning visuals for 4K content creation, media playback, and image processing. Additionally, this series of fan box embedded players can be used to manage in-store traffic analytics and engage customers with virtual interactions to increase product interest.
Key Features
- Intel® 8/9th Gen Core™ socket type processor
- 3 x HDMI 2.0 resolution 4K@60Hz
- Storage M.2 2280 Key M
- Support iAMT technology
- Dual DDR4 SO-DIMM up to 32G
- TPM 2.0 IC onboard
- Fan box design

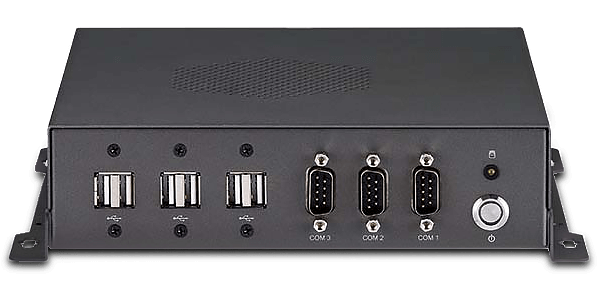

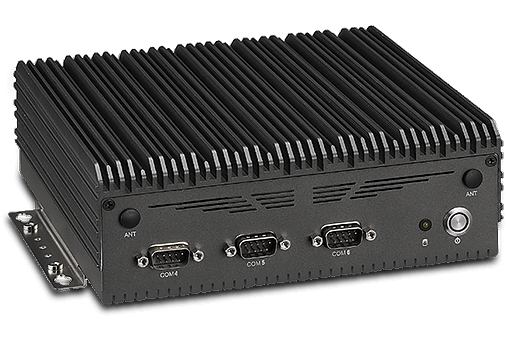

Neu-X302
The Neu-X302 is a powerful industrial grade fanless edge computing system that features Intel® 8th/9th Core™ i7/i5/i3 and Celeron processors (formerly Coffee Lake) with an Intel® Q370/H310 express chipset. With exceptional computing performance and outstanding GPU performance based on the Intel® UHD Graphics 630 engine, the Neu-X302 offers an impressive array of I/O connections, including 6 x COM ports, 4 x USB 3.0, 2 x LANs, 1 x VGA and 1 x HDMI 1.4 for 4K display output. Additionally, 6 more expandable USB 2.0 ports can be added to the edge upon request. The Neu-X302 also provides great expansion possibilities, featuring two M.2 slots for SSD storage, Wi-Fi or LTE connectivity. This system is perfect for industrial testing equipment or measurement machines that require high-end supercomputing and graphics performance with rich I/O connectivity.
Key Features
- Support 8th/9th Intel® Core™ socket type processor
- Dual channel DDR4 SO-DIMM, 32GB max.
- 1 x VGA and 1 x HDMI 1.4 4K display output
- Dual Intel® LAN ports
- 6 x COM port, 10 x USB, Mic-in/Line-out
- Optional TPM 2.0 for security advantage
- Support Intel® AMT Technology
- Onboard M.2 Key B/E for storage & wireless connection
| Model Name | NEU-X101-6C | NEU-X101 | NEU-X303mini | Neu-X300-F65 | Neu-X302 | Neu-X300 |
|---|---|---|---|---|---|---|
| Dementions | 155x121x44 | 155x121x44 | 183x137.9x47.9 | 190x220x46.8 | 200x212.5x70.3 | 190x200x54.4 |
| Voltage | 9-24V phoenix | 12V DC Jack | 12V DC Jack | 12V Mini-DIN | 12V Mini-DIN | 12V Mini-DIN |
| CPU | Celeron J3455 | Celeron J3455 | 12th Gen Core i3/i5/i7 | i3/i5/i7 9te Gen. | i3/i5/i7 9te Gen. | i3/i5/i7/i9 9te Gen. |
| Max. RAM | 8GB DDR3L | 8GB DDR3L | 64GB DDR5 | 32GB DDR4 | 32GB DDR4 | 32GB DDR4 |
| HDMI | 2x | 2x | 1x | 3x | 1x | 3x |
| Display Port (Type C) | — | — | 2x | — | — | — |
| LAN | 2x | 2x | 2x 2.5Gbit | 2x | 2x | 2x |
| USB 3.x | 2x | 2x | 4x + 2x Type C | 4x | 4x | 4x |
| USB 2.0 | 2x | 2x | — | 6x | — | — |
| COM RS232 | 5x | optional | internal | 2x | 3x | 1x + 1x optional |
| COM RS485/422/232 | 1x | 1x | — | 1x | 3x | — |
| GPIO | — | — | — | 8-bit optional | — | — |
| Operating temperature | -5...+50°C | -5...+50°C | 0...+60°C | -5...+45°C | -5...+45°C | -5...+45°C |
| TPM2.0 | optional | optional | on board | on board | on board | on board |
| OS Support | Windows 10, Linux 4.1 | Windows 10, Linux 4.1 | Windows 11/10, Linux | Windows 11/10, Linux | Windows 11/10, Linux | Windows 11/10, Linux |
For further technical information, inquiries about offers or placement of orders, please contact our sales team at sales@ipc2u.com
