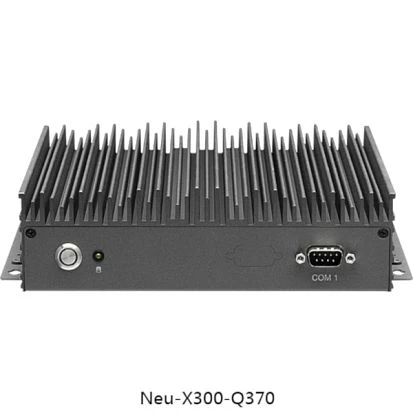

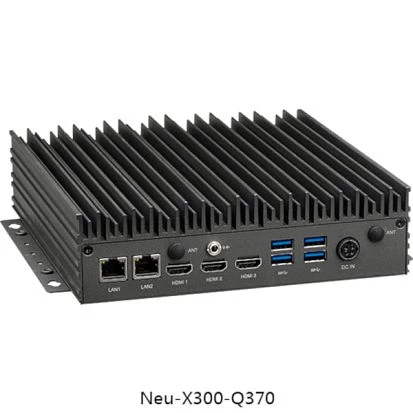

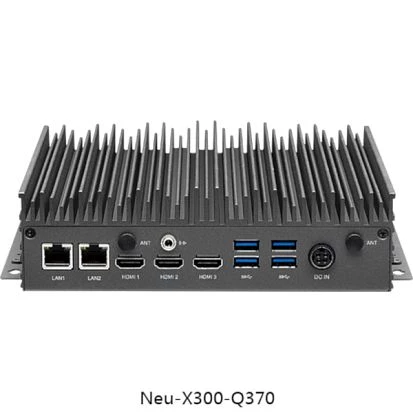

Neu-X300-Q370
NEXCOM
SKU: 56983700
Fanless Edge Embedded System, Intel 8th Gen Core i3/i5/i7 CPU, Up to 32GB DDR4 RAM, Q370 Chipset, 3xHDMI, 2xGbE LAN, 1xCOM, 4xUSB 3.0, 1xM.2 2280 Key-M, 1xM.2 2230 Key-E, 1xPCIe x16, Audio, TPM2.0, 12VDC-in with 96W Power Adapter
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Coffee Lake
Socket
LGA1151
CPU Support Type
Core i3, Core i5, Core i7
Chipset
Chipset
Intel Q370
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
No
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
3xHDMI
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Wi-Fi
Wi-Fi Standard
Yes (Optional)
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
4
USB v3.x
4
Digital Input-Output
GPIO
4xDigital In / 4xDigital Out
Drive interfaces
SATA 3
1
M.2
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
3
PCI Express x16
1
M.2
2
M.2 Form Factor
2280 M, 2230 E
LED / Controls
LED
1xHDD LED, Power LED
Controls
On/Off
Connectors
Connectors
DB9, 2xRJ45, 4xUSB, Line Out, 4-pin DC input, 3xHDMI
System Power Input
Input Voltage DC
12..12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
96 W
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
190 mm
Height
54.4 mm
Depth
200 mm
Operating Conditions
Operating Temperature
-5..45 °C
Humidity
10-95%
Standards and Certifications
Certifications
CE, FCC Class A
EMI
EN 55032, EN 55035
Dimensions
Net Weight
2.2 kg
Gross Weight
3 kg
