Neu-X1025-N50
NEXCOM
SKU: 80196900

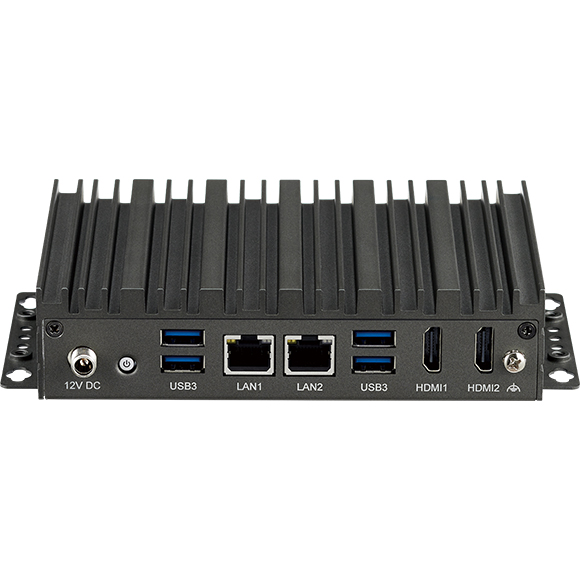

Fanless Edge Box PC, Intel Alder Lake N50 3.4GHz CPU, Up to 16GB DDR5 SO-DIMM RAM, 2xHDMI, 2x2.5GbE LAN, 1xCOM, 4xUSB 3.2, 8-bit GPIO Int., 1xMiniPCIe Full-Size, 1xM.2 2242 Key-M (SATA), SIM Slot, 12VDC-in with 60W Power Adapter
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Alder Lake
Processor Installed
Intel N50
Socket
FCBGA1264
Max CPU frequency
3.4 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR5
Socket Type
1xSODIMM
ECC
No
Maximum Memory
16 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
2xHDMI
Ethernet
Total Ethernet
2
2,5 Gbit/s
2
Wi-Fi
Wi-Fi Standard
Yes (Optional)
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
4
USB v3.x
4
Drive interfaces
M.2
1
Extension Slots
Total
2
M.2
1
M.2 Form Factor
2242 M
Mini-PCIe/Mini Card
1
SIM Card slots
Yes, 1, Nano SIM
LED / Controls
LED
Power LED, SSD LED
Controls
On/Off
Connectors
Connectors
DB9, 2xHDMI, 2xRJ45 Ethernet, 4xUSB, DC Input
System Power Input
Input Voltage DC
12..12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
60 W
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
179.5 mm
Height
37 mm
Depth
106 mm
Operating Conditions
Operating Temperature
-5..55 °C
Humidity
10-95%
Standards and Certifications
Certifications
CE, FCC Class A
EMI
en_55032, en55035
Safety
UL/cUL, LVD
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
0.85 kg
Gross Weight
1.4 kg
