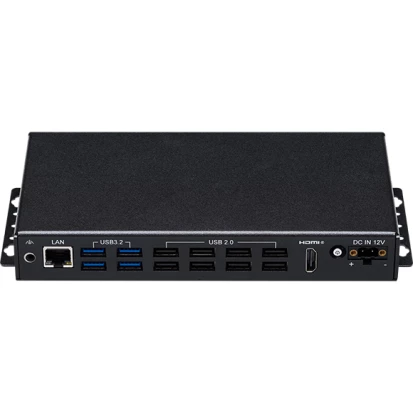

Neu-XE105-N50-12U
NEXCOM
SKU: 80339900
Fanless Edge Box PC, Intel Alder Lake N50 3.4GHz CPU, Up to 16GB DDR5 SO-DIMM RAM, HDMI, 1x2.5GbE LAN, 4xUSB 3.2, 8xUSB 2.0, 3xCOM, 16-bit GPIO, 1xM.2 2242 Key-M (SATA), 1xM.2 Key-E, Audio, 12VDC-in
Price on request
Available
Available
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Alder Lake
Processor Installed
Intel N50
Socket
FCBGA1264
Max CPU frequency
3.4 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR5
Socket Type
1xSODIMM
ECC
No
Maximum Memory
16 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
HDMI
Ethernet
Total Ethernet
1
2,5 Gbit/s
1
Wi-Fi
Wi-Fi Standard
Yes (Optional)
Interfaces
COM Total
3
RS-232
2
RS-485
1
USB Total
12
USB 2.0
8
USB v3.x
4
Digital Input-Output
GPIO
8xDigital In / 8xDigital Out
Drive interfaces
M.2
1
Extension Slots
Total
2
M.2
2
M.2 Form Factor
2242 M, 2230 E
LED / Controls
LED
Power LED, SSD LED
Controls
On/Off
Connectors
Connectors

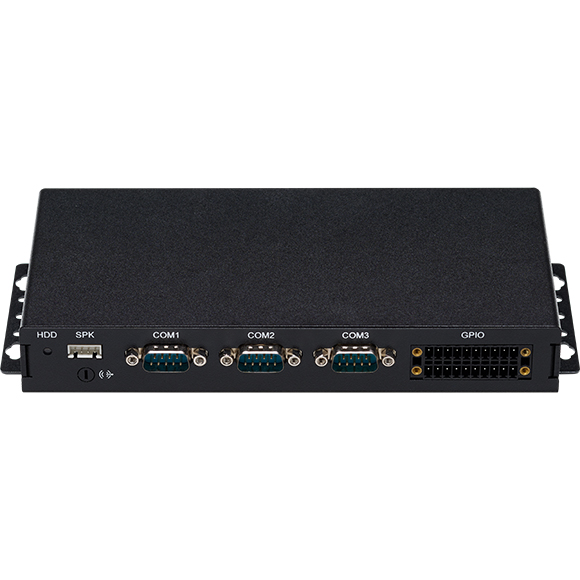

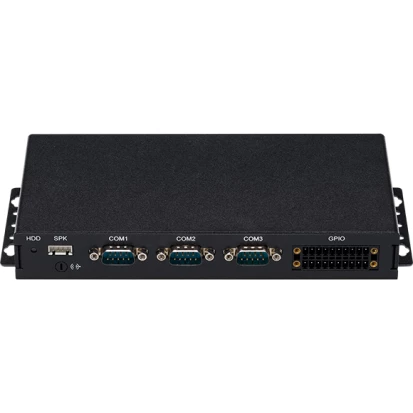

3xDB9, HDMI, RJ45 Ethernet, 12xUSB, Line Out, DC input (terminal block), GPIO (terminal block)
System Power Input
Input Voltage DC
12..12 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
220 mm
Height
29.6 mm
Depth
106.9 mm
Operating Conditions
Operating Temperature
0..45 °C
Humidity
10-95%
Standards and Certifications
Certifications
CE, FCC Class A, EN 55032, EN 55035
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
0.3 kg
Gross Weight
0.63 kg
