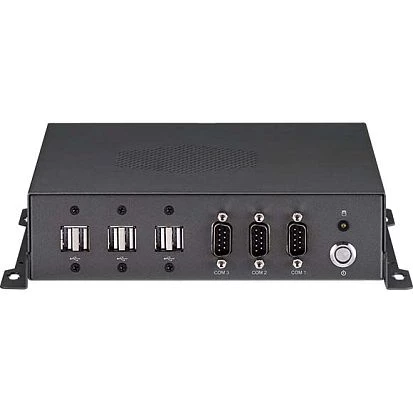

Neu-X300-F65
NEXCOM
SKU: 57609000
Fanless Edge Embedded Computing System, Intel 8/9th Gen Core i3/i5/i7/i9 CPU, up to 32GB DDR4 RAM, 1xM.2 2280 M-Key, 1xM.2 2230 E-Key, TPM 2.0, 3xHDMI, 2xGbE LAN, 3xCOM, 10xUSB 2.0, 4xUSB 3.0, 1xPCIe x16, 1xSATA 3.0, 12VDC-in with PSU, -5..45C
Price on request
Available on order
Available on order
Construction
Construction Chassis
Metal Chassis
Type
Fanless
CPU
СPU Generation/Family
Coffee Lake, Coffee Lake Refresh
Socket
LGA1151
Chipset
Chipset
Intel Q370
Memory
Socket Type
2xSODIMM
Maximum Memory
32 GB
Graphic
Graphic Controller
Integrated in CPU, Intel UHD Graphics 630
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Wi-Fi
Wi-Fi Standard
Yes
Interfaces
COM Total
3
RS-232
2
RS-232/422/485
1
USB Total
14
USB 2.0
10
Extension Slots
Total
3
PCI Express x16
1
M.2
2
Connectors
Connectors
3xDB9, 2xRJ45, 10xUSB, 4-pin DC input, 3xHDMI
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
120 W
Software
Operating System Compatibility
Linux OS, Windows 10
Dimensions and weight
Width
220 mm
Height
46.8 mm
Depth
190 mm
Operating Conditions
Vibration
Random: 2Grms@5~500 Hz, IEC60068-2-64; Sinusoidal: 2G@5~500 Hz, IEC60068-2-6
Shock
50G peak acceleration, 11ms according to IEC60068-2-27
Standards and Certifications
Certifications
CE, FCC Class A
EMS
EN 55032, EN 55035
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
1.3 kg
Gross Weight
3 kg
