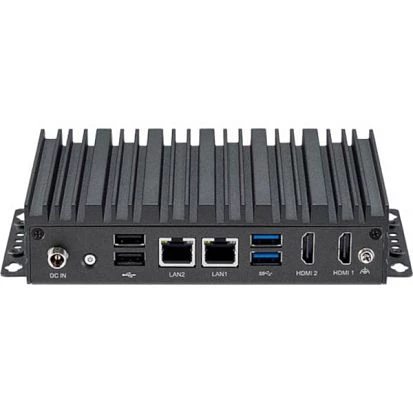

Neu-X101-6C
NEXCOM
SKU: 57431500
Fanless Embedded Server, Intel Apollo Lake J3455 1.50GHz CPU, 1xSO-DIMM DDR3L max 8 GB RAM, 2xHDMI, 2xGbE LAN, 6xRS485, 2xUSB 3.0, 2xUSB 2.0, miniPCIe, SIM, M.2 M-Key, 12VDC-in with external power adapter 100..240VAC, -5..50C operating temp.
Price on request
Available
Available
CPU
СPU Generation/Family
Apollo Lake
Processor Installed
Intel Celeron J3455
Socket
FCBGA1296
Max CPU frequency
2.3 GHz
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
ECC
No
Maximum Memory
8 GB
Graphic
Graphic Controller
Intel HD Graphics 500
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-485
1
RS-232/422/485
1
USB Total
4
USB 2.0
2
USB v3.x
2
Extension Slots
Total
2
M.2
1
Mini-PCIe/Mini Card
1
SIM Card slots
Yes, Nano SIM
Connectors
Connectors
2xDB9, 2xHDMI, 2xRJ45, 4xUSB
System Power Input
Input Voltage DC
12..12 V
Input Voltage AC
100..240 V
Power Consumption
60 W
Software
Operating System Compatibility
Windows 10, Linux kernel 4.x
Dimensions and weight
Width
179.5 mm
Height
37 mm
Depth
106 mm
Operating Conditions
Operating Temperature
-5..50 °C
Vibration
Vibration protection - Random: 2Grms @ 5~500 Hz, IEC60068-2-64 - Sinusoidal: 2G @ 5~500 Hz, IEC60068-2-6
Shock
Shock protection: 50G peak acceleration, 11ms according to IEC60068-2-27
Standards and Certifications
Certifications
CE, FCC Class A
EMS
EN 55032, EN 55035
Safety
EN 62368-1 (LVD)
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64
Dimensions
Gross Weight
3 kg
