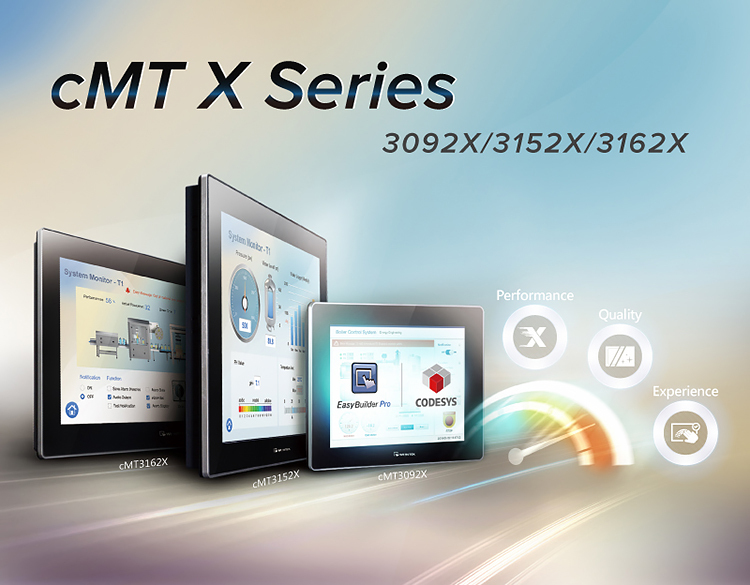

Weintek’s cMT-X operator panels and HMIs for SCADA and IIoT solutions

Weintek introduces a series of operator panels called cMT-X which support integration into industrial Internet of Things (IIoT) systems via the MQTT protocol. This allows a client to create a solution not only for local control of industrial control systems, but also to transfer data to the cloud server AWS IoT, Microsoft Azure or Google Cloud for data analysis systems.


The new cMT-X series retains all the major features of previous generations of Weintek HMIs and supports over 300 PLC drivers. In addition, you can use CODESYS with IEC 61131-3 languages to control I/O modules via Modbus, CANopen, EtherNet/IP and EtherCAT protocols.

For easy integration into SCADA systems, the operator panels support the universal OPC UA protocol as a Client, while the Advanced series panels can operate as an OPC UA Server. In addition, there is support for MySQL and MS SQL databases, which makes it possible to create a centralized recipe management or create integration with ERP.


cMT-X series consists of 3 sub-series: Basic, Standard and Advanced, which differ in software and hardware. Below are the main differences between these sub-series.

Main software differences of cMT-X panels:

Category Name Basic cMT1000X Standard cMT2000X Advanced cMT3000X
Weincloud support Dashboard, EasyAccess 2.0 Yes Yes Yes
Functions 3G/4G Dongle Yes Yes Yes
Web Interface (EasyWeb 2.0) Yes Yes Yes
LDAP Yes Yes
cMT Viewer App Yes Yes
VNC Server, VNC Viewer Yes Yes Yes
BACnet Schedule Yes Yes Yes
Action Trigger Yes Yes
Media Player Yes Yes
IP/USB Camera Yes Yes
JS Object Yes Yes
Barcode Scanner Yes
PLC Web Browser Yes
IIoT MQTT Yes Yes Yes
MQTT Cloud Service Integration Yes Yes
OPC UA Server Yes
OPC UA Client Yes Yes Yes
Data, logging Database Server Yes
SQL Query Yes
Event Bar Chart Yes
Driver SIEMENS MPI Yes
CAN bus Yes
CODESYS Yes Yes

Main hardware differences of some models of cMT-X series:

Series Basic Standard Advanced
Model cMT1106X cMT2108X2 cMT2158X cMT3102X cMT3162X
Display size 10.1” 15” 10.1” 15.6”
Touch screen Resistive Capasitive
CPU 4-core RISC
Flash / RAM 4 GB / 1 GB
USB / SD 1 x USB Host 1 x USB Host, 1 x SD 1 x USB Host
Wi-Fi Via M02 Wi-Fi module Via M02 Wi-Fi module
Ethernet 1 x LAN 1 x LAN, 1 x GLAN
COM 3 x COM 2 x COM 3 x COM, CAN Bus 2 x COM, CAN Bus
Chassis material Plastic Aluminum Plastic Plastic front panel, aluminum chassis
Dimensions, mm 271 x 213 x 38 366 x 293 x 48 271 x 213 x 38 400 x 263 x 27.6
Protection rate NEMA4 / IP66 front
Operational temperature 0°…50° C

For further technical information, inquiries about offers or placement of orders, please contact our sales team at sales@ipc2u.com
