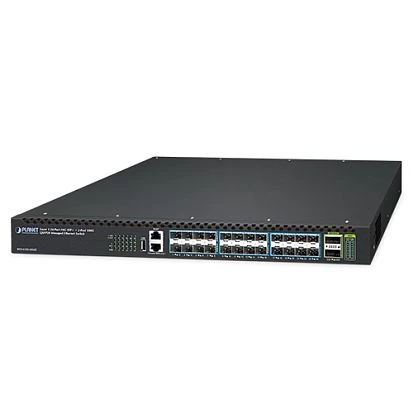

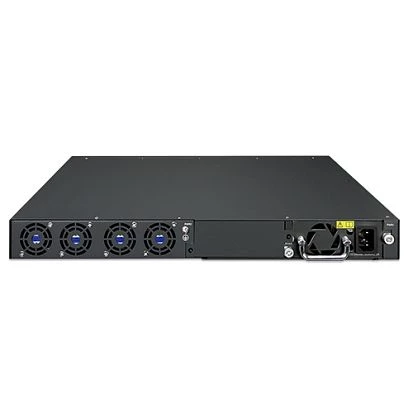

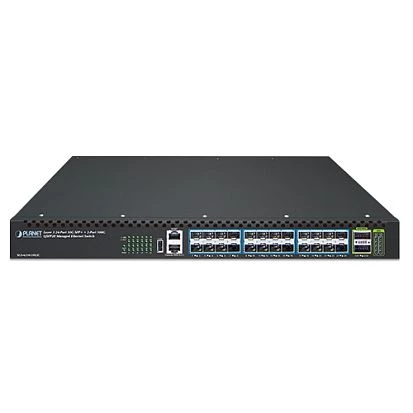

XGS-6350-24X2C
Planet
SKU: 57981000
Layer 3 Managed Ethernet Switch, 24x10GBase-SR/LR SFP+ Ports, 2x100G QSFP28 Ports, 1x10/100/1000Base-T RJ-45 port, 1xUSB, 1xCOM, 100..240V AC, Operating Temperature 0..50C
Price on request
Available on order
Available on order
Ethernet
10/100/1000 Mbit/s
1
10 Gbit SFP+ Ports
24
Interfaces
RS-232
1
Supported Protocols
Protocol Layer 3
VRRP, Static Routing, RIP V1/V2, OSPF, DVMRP, PIM-DM, PIM-SM, PIM-SSM, BGP
Managment Protocols
NTP, GVRP, TFTP, FTP, IGMP Snooping v1/v2/v3
Security Protocols
SSH, RADIUS, SSL, TACACS+
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802ae for 10 Gigabit Ethernet
Dimensions and weight
Width
442.5 mm
Depth
300.1 mm
Height
44.6 mm
Operating Conditions
Operating Temperature
0..50 °C
Humidity
5-85%
Standards and Certifications
Certifications
FCC Class A
Dimensions
Net Weight
5.7 kg
Gross Weight
6.7 kg
Ethernet
10/100/1000 Mbit/s
1
10 Gbit SFP+ Ports
24
Interfaces
RS-232
1
Supported Protocols
Protocol Layer 3
VRRP, Static Routing, RIP V1/V2, OSPF, DVMRP, PIM-DM, PIM-SM, PIM-SSM, BGP
Managment Protocols
NTP, GVRP, TFTP, FTP, IGMP Snooping v1/v2/v3
Security Protocols
SSH, RADIUS, SSL, TACACS+
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802ae for 10 Gigabit Ethernet
Dimensions and weight
Width
442.5 mm
Depth
300.1 mm
Height
44.6 mm
Operating Conditions
Operating Temperature
0..50 °C
Humidity
5-85%
Standards and Certifications
Certifications
FCC Class A
Dimensions
Net Weight
5.7 kg
Gross Weight
6.7 kg
Ethernet
10/100/1000 Mbit/s
1
10 Gbit SFP+ Ports
24
Interfaces
RS-232
1
Supported Protocols
Protocol Layer 3
VRRP, Static Routing, RIP V1/V2, OSPF, DVMRP, PIM-DM, PIM-SM, PIM-SSM, BGP
Managment Protocols
NTP, GVRP, TFTP, FTP, IGMP Snooping v1/v2/v3
Security Protocols
SSH, RADIUS, SSL, TACACS+
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802ae for 10 Gigabit Ethernet
Dimensions and weight
Width
442.5 mm
Depth
300.1 mm
Height
44.6 mm
Operating Conditions
Operating Temperature
0..50 °C
Humidity
5-85%
Standards and Certifications
Certifications
FCC Class A
Dimensions
Net Weight
5.7 kg
Gross Weight
6.7 kg
Ethernet
10/100/1000 Mbit/s
1
10 Gbit SFP+ Ports
24
Interfaces
RS-232
1
Supported Protocols
Protocol Layer 3
VRRP, Static Routing, RIP V1/V2, OSPF, DVMRP, PIM-DM, PIM-SM, PIM-SSM, BGP
Managment Protocols
NTP, GVRP, TFTP, FTP, IGMP Snooping v1/v2/v3
Security Protocols
SSH, RADIUS, SSL, TACACS+
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802ae for 10 Gigabit Ethernet
Dimensions and weight
Width
442.5 mm
Depth
300.1 mm
Height
44.6 mm
Operating Conditions
Operating Temperature
0..50 °C
Humidity
5-85%
Standards and Certifications
Certifications
FCC Class A
Dimensions
Net Weight
5.7 kg
Gross Weight
6.7 kg
