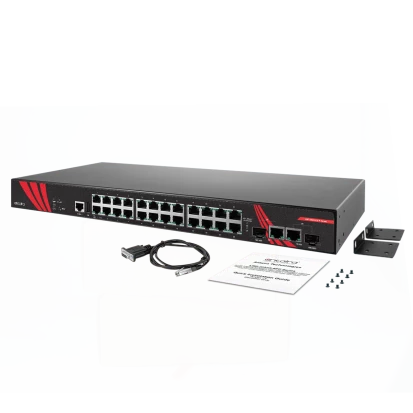

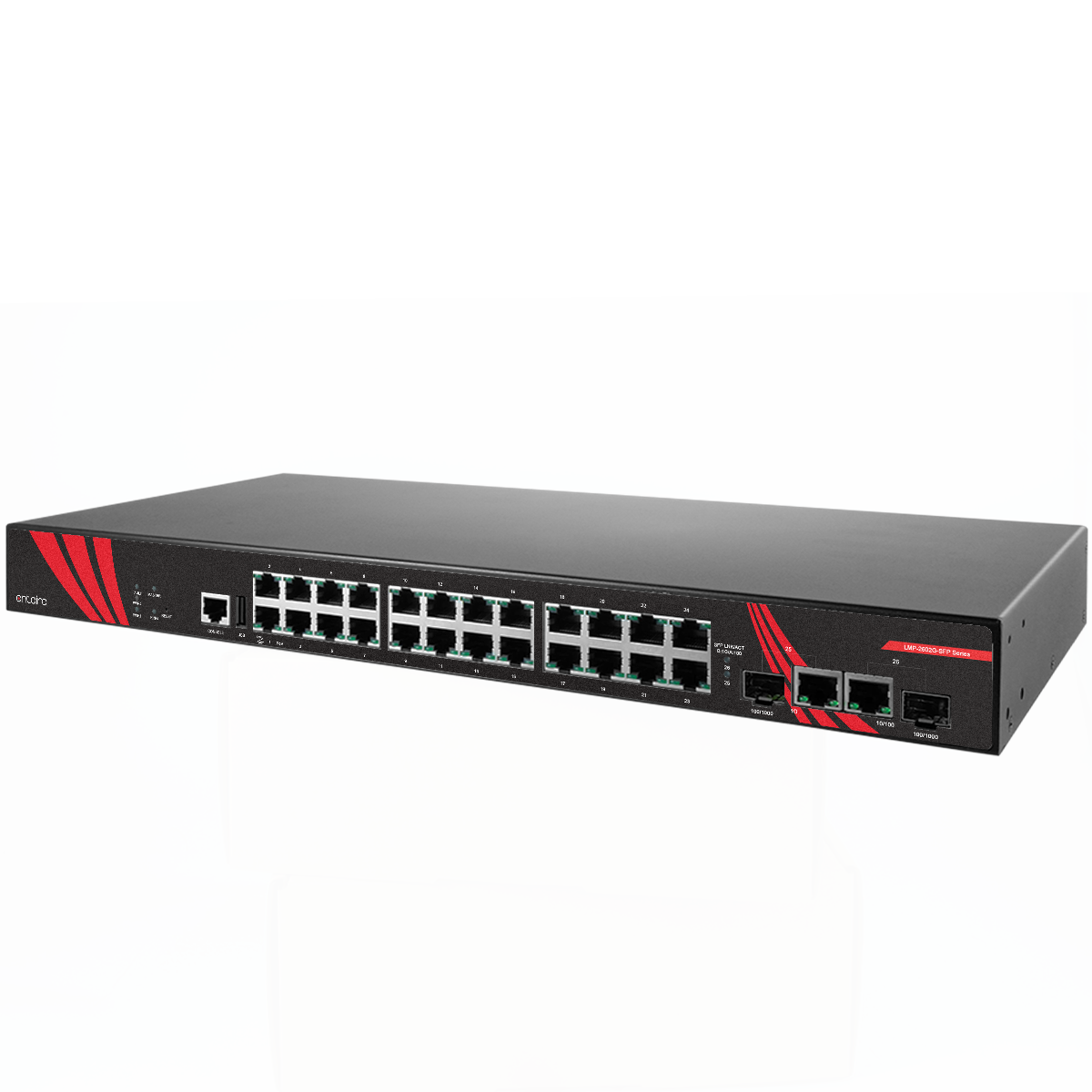

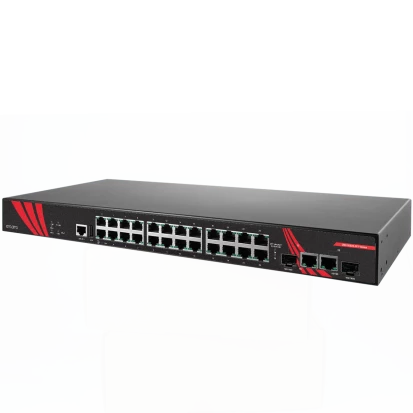

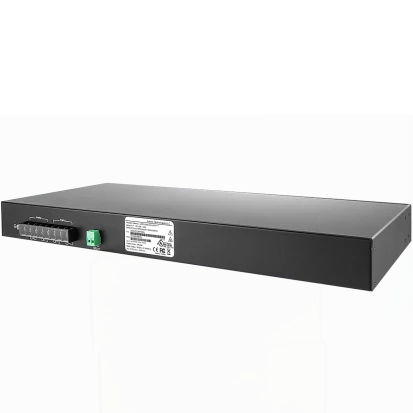

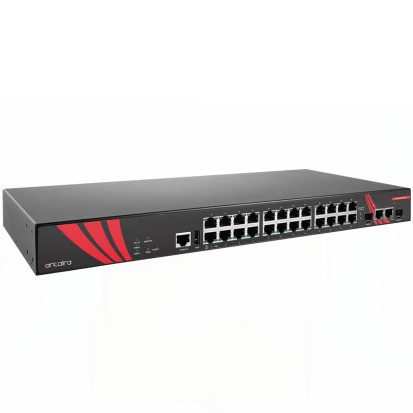

LMP-2602G-SFP
Antaira Technologies
SKU: 80228800
Industrial Managed PoE+ Ethernet Switch, IP40, 28x10/100/1000Base-TX with 24xPoE+, 2x100/1000Base-X SFP, Power Input 48..55 VDC, Operating Temperature -10..65 C
Price on request
Available
Available
Ethernet
Total Ethernet
28
10/100/1000 Mbit/s
28
SFP 100/1000 Mbit Ports
2
PoE+ 10/100/1000 Mbit/s
8
Switch Properties
MAC Table Size
8000
Jumbo Frame Size
9.6 kB
Supported Protocols
Managment Protocols
SNMPv1/v2c/v3, Syslog, SNTP, RMON, TFTP, IGMPv1/v2, RARP
Reservation protocols
ERPS, MSTP, STP, RSTP
IEEE Standard
IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3u for 100BaseT(X)
System Power Input
Input Voltage DC
48..55 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount
Protection Level of Chassis
IP40
Dimensions and weight
Width
440 mm
Depth
200 mm
Height
44 mm
Operating Conditions
Operating Temperature
-10..65 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE
EMI
FCC Part 15 Subpart B Class A
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 55024, EN 61000-4-8, EN 61000-6-2, EN 61000-6-4, EN 55032
Safety
UL 61010-2-201
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
2.8 kg
Gross Weight
3.6 kg
