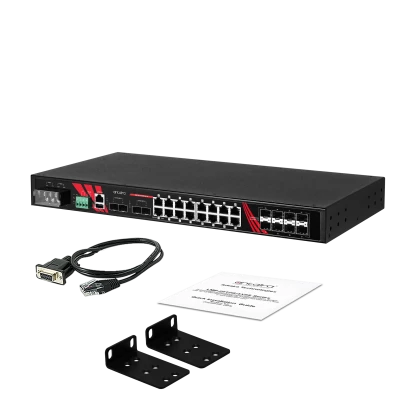

LMP-2812G-4X8S-T

SKU: 80252600

Industrial Managed PoE+ Ethernet Switch, IP30, 16x10/100/1000Base-TX with PoE+, 8x100/1000 SFP, 4x1G/2.5G/10G SFP+, Power Input 48..55 VDC, Operating Temperature -40..75 C

Price on request

Ethernet

Total Ethernet

10/100/1000 Mbit/s

SFP 100/1000 Mbit Ports

10 Gbit SFP+ Ports

PoE+ 10/100/1000 Mbit/s

Power Budget

480 W

Switch Properties

MAC Table Size

32000

Jumbo Frame Size

10 kB

Max. Number of VLANs

4095

IGMP Groups

1024

Supported Protocols

Industrial Protocols

Modbus TCP

Protocol Layer 3

Static Routing

Managment Protocols

SNMPv1/v2c/v3, HTTP, LLDP, Syslog, Telnet, QoS, DHCP, NTP, GVRP, RMON, TFTP, ARP, FTP, IGMP Snooping v1/v2/v3, GARP

Reservation protocols

MSTP, STP, RSTP

Security Protocols

HTTPS, RADIUS, TACACS+, SSH2

IEEE Standard

IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3u for 100BaseT(X)

System Power Input

Input Voltage DC

48..55 V

Construction

Construction Chassis

Metal Chassis

Mounting Configuration

19" Rackmount

Protection Level of Chassis

IP30

Dimensions and weight

Width

440 mm

Depth

44 mm

Height

215 mm

Operating Conditions

Operating Temperature

-40..75 °C

Humidity

5-95%

Standards and Certifications

Certifications

CE, FCC

EMI

FCC Part 15 Subpart B Class A

EMS

IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-6-2, EN 61000-6-4, EN 55032, EN 55035

Safety

UL 61010-2-201

Freefall

IEC 60068-2-32

Vibration And Shock

IEC 60068-2-6, IEC 60068-2-27

Dimensions

Net Weight

4 kg

Gross Weight

5 kg

Ethernet

Total Ethernet

10/100/1000 Mbit/s

SFP 100/1000 Mbit Ports

10 Gbit SFP+ Ports

PoE+ 10/100/1000 Mbit/s

Power Budget

480 W

Switch Properties

MAC Table Size

32000

Jumbo Frame Size

10 kB

Max. Number of VLANs

4095

IGMP Groups

1024

Supported Protocols

Industrial Protocols

Modbus TCP

Protocol Layer 3

Static Routing

Managment Protocols

SNMPv1/v2c/v3, HTTP, LLDP, Syslog, Telnet, QoS, DHCP, NTP, GVRP, RMON, TFTP, ARP, FTP, IGMP Snooping v1/v2/v3, GARP

Reservation protocols

MSTP, STP, RSTP

Security Protocols

HTTPS, RADIUS, TACACS+, SSH2

IEEE Standard

System Power Input

Input Voltage DC

48..55 V

Construction

Construction Chassis

Metal Chassis

Mounting Configuration

19" Rackmount

Protection Level of Chassis

IP30

Dimensions and weight

Width

440 mm

Depth

44 mm

Height

215 mm

Operating Conditions

Operating Temperature

-40..75 °C

Humidity

5-95%

Standards and Certifications

Certifications

CE, FCC

EMI

FCC Part 15 Subpart B Class A

EMS

IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-6-2, EN 61000-6-4, EN 55032, EN 55035

Safety

UL 61010-2-201

Freefall

IEC 60068-2-32

Vibration And Shock

IEC 60068-2-6, IEC 60068-2-27

Dimensions

Net Weight

4 kg

Gross Weight

5 kg

Ethernet

Total Ethernet

10/100/1000 Mbit/s

SFP 100/1000 Mbit Ports

10 Gbit SFP+ Ports

PoE+ 10/100/1000 Mbit/s

Power Budget

480 W

Switch Properties

MAC Table Size

32000

Jumbo Frame Size

10 kB

Max. Number of VLANs

4095

IGMP Groups

1024

Supported Protocols

Industrial Protocols

Modbus TCP

Protocol Layer 3

Static Routing

Managment Protocols

SNMPv1/v2c/v3, HTTP, LLDP, Syslog, Telnet, QoS, DHCP, NTP, GVRP, RMON, TFTP, ARP, FTP, IGMP Snooping v1/v2/v3, GARP

Reservation protocols

MSTP, STP, RSTP

Security Protocols

HTTPS, RADIUS, TACACS+, SSH2

IEEE Standard

System Power Input

Input Voltage DC

48..55 V

Construction

Construction Chassis

Metal Chassis

Mounting Configuration

19" Rackmount

Protection Level of Chassis

IP30

Dimensions and weight

Width

440 mm

Depth

44 mm

Height

215 mm

Operating Conditions

Operating Temperature

-40..75 °C

Humidity

5-95%

Standards and Certifications

Certifications

CE, FCC

EMI

FCC Part 15 Subpart B Class A

EMS

IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-6-2, EN 61000-6-4, EN 55032, EN 55035

Safety

UL 61010-2-201

Freefall

IEC 60068-2-32

Vibration And Shock

IEC 60068-2-6, IEC 60068-2-27

Dimensions

Net Weight

4 kg

Gross Weight

5 kg

Ethernet

Total Ethernet

10/100/1000 Mbit/s

SFP 100/1000 Mbit Ports

10 Gbit SFP+ Ports

PoE+ 10/100/1000 Mbit/s

Power Budget

480 W

Switch Properties

MAC Table Size

32000

Jumbo Frame Size

10 kB

Max. Number of VLANs

4095

IGMP Groups

1024

Supported Protocols

Industrial Protocols

Modbus TCP

Protocol Layer 3

Static Routing

Managment Protocols

SNMPv1/v2c/v3, HTTP, LLDP, Syslog, Telnet, QoS, DHCP, NTP, GVRP, RMON, TFTP, ARP, FTP, IGMP Snooping v1/v2/v3, GARP

Reservation protocols

MSTP, STP, RSTP

Security Protocols

HTTPS, RADIUS, TACACS+, SSH2

IEEE Standard

System Power Input

Input Voltage DC

48..55 V

Construction

Construction Chassis

Metal Chassis

Mounting Configuration

19" Rackmount

Protection Level of Chassis

IP30

Dimensions and weight

Width

440 mm

Depth

44 mm

Height

215 mm

Operating Conditions

Operating Temperature

-40..75 °C

Humidity

5-95%

Standards and Certifications

Certifications

CE, FCC

EMI

FCC Part 15 Subpart B Class A

EMS

IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-6-2, EN 61000-6-4, EN 55032, EN 55035

Safety

UL 61010-2-201

Freefall

IEC 60068-2-32

Vibration And Shock

IEC 60068-2-6, IEC 60068-2-27

Dimensions

Net Weight

4 kg

Gross Weight

5 kg

Documentation

Documentation

Documentation

Documentation

Get a Quote
