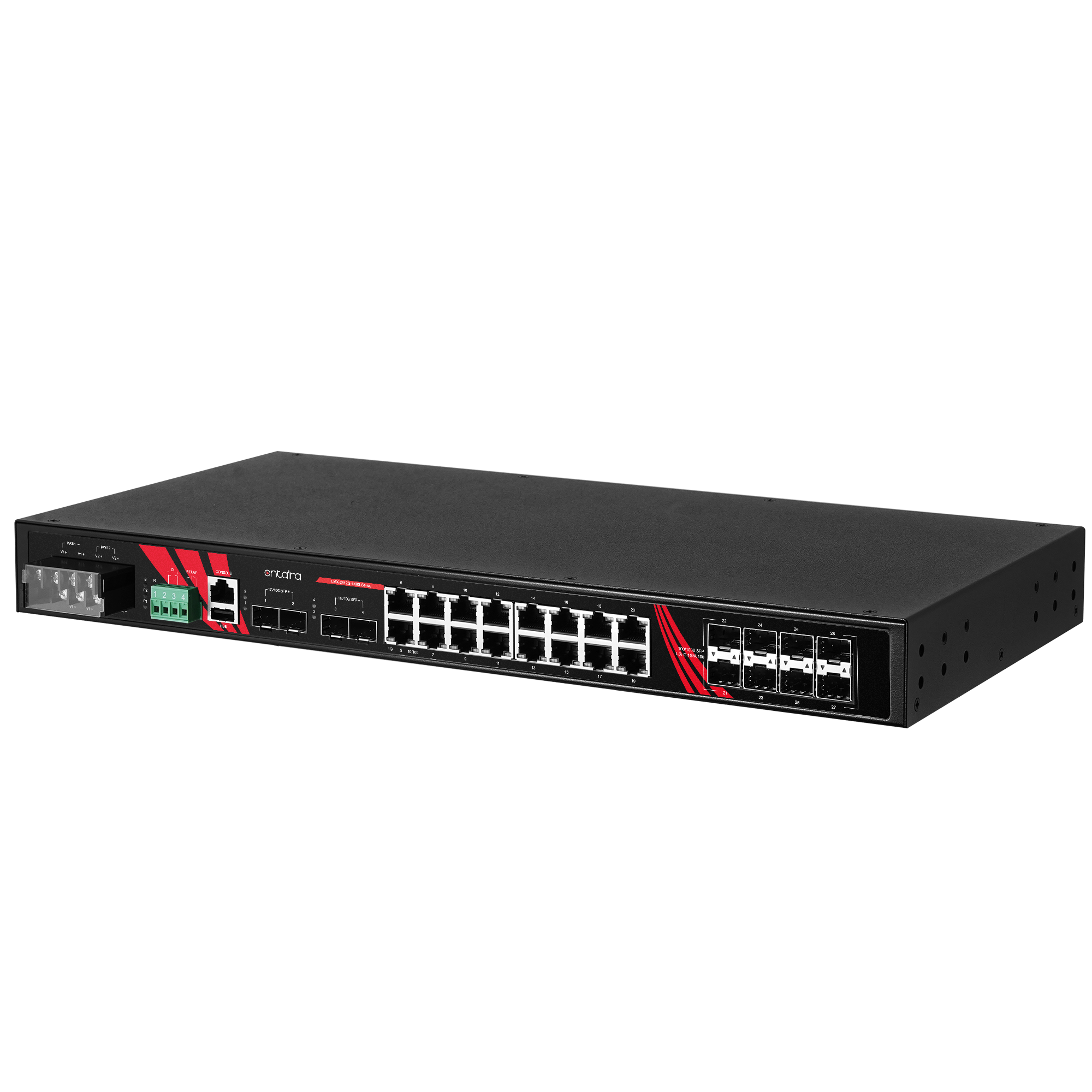

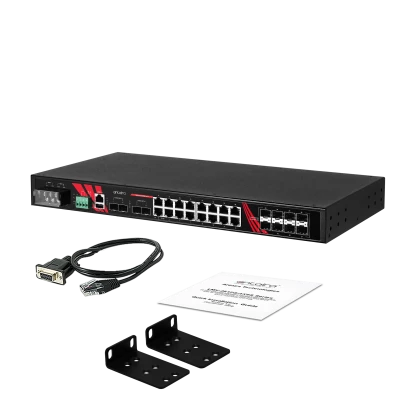

LMX-2812G-4X8S
Antaira Technologies
SKU: 80251600
Industrial Managed Ethernet Switch, IP30, 16x10/100/1000Base-TX, 8x100/1000Base-TX SFP, 4x1G/2.5G/10G SFP+, Power Input 12..48 VDC, Operating Temperature -10..65 C
Price on request
Available
Available
Ethernet
Total Ethernet
16
10/100/1000 Mbit/s
16
SFP 100/1000 Mbit Ports
8
10 Gbit SFP+ Ports
4
Switch Properties
MAC Table Size
16000
Jumbo Frame Size
9.6 kB
Max. Number of VLANs
1024
IGMP Groups
4095
Supported Protocols
Industrial Protocols
Modbus TCP
Protocol Layer 3
VRRP, Static Routing, RIP V1/V2, OSPF
Managment Protocols
SMTP, SNMPv1/v2c/v3, HTTP, LLDP, Syslog, Telnet, DNS, QoS, NTP, SNTP, GVRP, RMON, TFTP, LACP, DHCP Option 66/67/82, FTP, IGMP Snooping v1/v2/v3, GARP
Reservation protocols
ERPS, MSTP, STP, RSTP
Security Protocols
HTTPS, SSH, RADIUS, SSL, TACACS+
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3az for Energy-Efficient Ethernet, IEEE 802.3u for 100BaseT(X)
System Power Input
Input Voltage DC
12..48 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount
Protection Level of Chassis
IP30
Dimensions and weight
Width
440 mm
Depth
215 mm
Height
44 mm
Operating Conditions
Operating Temperature
-10..65 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE, FCC
EMI
FCC Part 15 Subpart B Class A
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-6-2, EN 61000-6-4, EN 55032, EN 55035
Safety
UL 61010-2-201
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
3.3 kg
Gross Weight
4 kg
