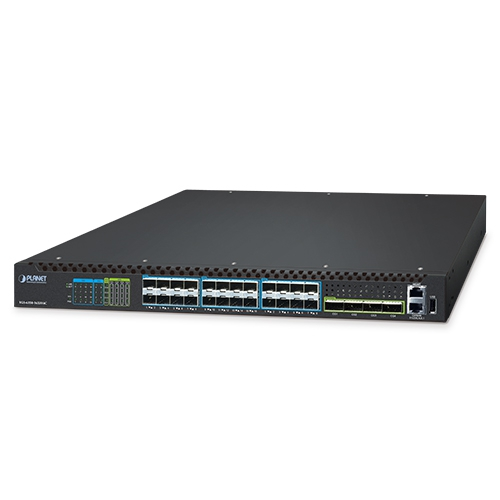

XGS-6350-16X8Y4C
Planet
SKU: 80263300
Managed L3 Ethernet Switch, 1x10/100/1000Base-T, 16x10GBase-SR/LR SFP+, 8x25G SFP28, 4x100G QSFP28, 1xUSB, 100..240V AC, Operating Temperature 0..50C
Price on request
Available
Available
Ethernet
10/100/1000 Mbit/s
1
10 Gbit SFP+ Ports
16
QSFP+ 100 Gigabit/s Ethernet
4
Switch Properties
Jumbo Frame Size
12 kB
Supported Protocols
Protocol Layer 3
VRRP, Static Routing, RIP V1/V2, OSPF, PIM-DM, PIM-SM, PIM-SSM, BGP
Managment Protocols
SNMPv1/v2c/v3, Telnet, DHCP, NTP, GVRP, TFTP, LACP, CoS, FTP, IGMP Snooping v1/v2/v3, ICMP
Reservation protocols
MSTP, STP, RSTP
Security Protocols
RADIUS, SSL, TACACS+, SSH2
IEEE Standard
ieee_802.3ae, IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
System Power Input
Input Voltage AC
100..240 V
Dimensions and weight
Width
442.5 mm
Depth
280.25 mm
Height
44.6 mm
Operating Conditions
Operating Temperature
0..50 °C
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
4.3 kg
Gross Weight
5 kg
Ethernet
10/100/1000 Mbit/s
1
10 Gbit SFP+ Ports
16
QSFP+ 100 Gigabit/s Ethernet
4
Switch Properties
Jumbo Frame Size
12 kB
Supported Protocols
Protocol Layer 3
VRRP, Static Routing, RIP V1/V2, OSPF, PIM-DM, PIM-SM, PIM-SSM, BGP
Managment Protocols
SNMPv1/v2c/v3, Telnet, DHCP, NTP, GVRP, TFTP, LACP, CoS, FTP, IGMP Snooping v1/v2/v3, ICMP
Reservation protocols
MSTP, STP, RSTP
Security Protocols
RADIUS, SSL, TACACS+, SSH2
IEEE Standard
ieee_802.3ae, IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
System Power Input
Input Voltage AC
100..240 V
Dimensions and weight
Width
442.5 mm
Depth
280.25 mm
Height
44.6 mm
Operating Conditions
Operating Temperature
0..50 °C
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
4.3 kg
Gross Weight
5 kg
Ethernet
10/100/1000 Mbit/s
1
10 Gbit SFP+ Ports
16
QSFP+ 100 Gigabit/s Ethernet
4
Switch Properties
Jumbo Frame Size
12 kB
Supported Protocols
Protocol Layer 3
VRRP, Static Routing, RIP V1/V2, OSPF, PIM-DM, PIM-SM, PIM-SSM, BGP
Managment Protocols
SNMPv1/v2c/v3, Telnet, DHCP, NTP, GVRP, TFTP, LACP, CoS, FTP, IGMP Snooping v1/v2/v3, ICMP
Reservation protocols
MSTP, STP, RSTP
Security Protocols
RADIUS, SSL, TACACS+, SSH2
IEEE Standard
ieee_802.3ae, IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
System Power Input
Input Voltage AC
100..240 V
Dimensions and weight
Width
442.5 mm
Depth
280.25 mm
Height
44.6 mm
Operating Conditions
Operating Temperature
0..50 °C
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
4.3 kg
Gross Weight
5 kg
Ethernet
10/100/1000 Mbit/s
1
10 Gbit SFP+ Ports
16
QSFP+ 100 Gigabit/s Ethernet
4
Switch Properties
Jumbo Frame Size
12 kB
Supported Protocols
Protocol Layer 3
VRRP, Static Routing, RIP V1/V2, OSPF, PIM-DM, PIM-SM, PIM-SSM, BGP
Managment Protocols
SNMPv1/v2c/v3, Telnet, DHCP, NTP, GVRP, TFTP, LACP, CoS, FTP, IGMP Snooping v1/v2/v3, ICMP
Reservation protocols
MSTP, STP, RSTP
Security Protocols
RADIUS, SSL, TACACS+, SSH2
IEEE Standard
ieee_802.3ae, IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
System Power Input
Input Voltage AC
100..240 V
Dimensions and weight
Width
442.5 mm
Depth
280.25 mm
Height
44.6 mm
Operating Conditions
Operating Temperature
0..50 °C
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
4.3 kg
Gross Weight
5 kg
