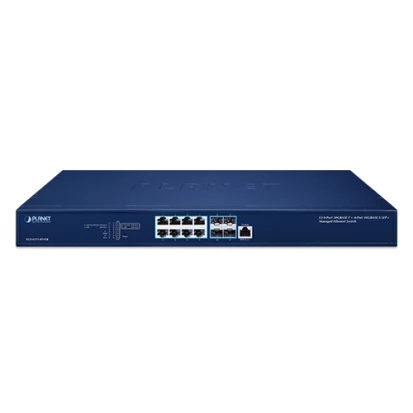

XGS-6311-8T4XR

SKU: 57988100

Managed Layer 3 Ethernet Switch, IP30, MIPS 800MHz, 8x100/1G/2.5G/5G/10GBase-T RJ-45 ports, 4x10GBase-X SFP+, 1xCOM, RAM 512 Mbytes, Flash Memory 32 Mbytes, Dual 100..240 VAC, Operating Temperature 0..50 C

Price on request

Ethernet

10 Gbit/s

10 Gbit SFP+ Ports

Interfaces

RS-232

Switch Properties

Jumbo Frame Size

12 kB

Supported Protocols

Protocol Layer 3

Static Routing, RIP V1/V2, OSPF, BGP

Managment Protocols

DHCP Server/Client, SNMPv1/v2c/v3, Telnet, VLAN, NTP, SNTP, RMON, TFTP, LACP, CoS, TCP, IGMPv1/v2/v3, FTP, IGMP Querier

Security Protocols

SSH, RADIUS, TACACS+

IEEE Standard

IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802ae for 10 Gigabit Ethernet, IEEE 802.3u for 100BaseT(X)

System Power Input

Input Voltage AC

100..240 V

Construction

Height

1 U

Dimensions and weight

Width

441.5 mm

Depth

207.5 mm

Height

44 mm

Operating Conditions

Operating Temperature

0..50 °C

Humidity

5-90%

Standards and Certifications

Certifications

CE, FCC Class A

Dimensions

Net Weight

2.8 kg

Gross Weight

3.8 kg

Ethernet

10 Gbit/s

10 Gbit SFP+ Ports

Interfaces

RS-232

Switch Properties

Jumbo Frame Size

12 kB

Supported Protocols

Protocol Layer 3

Static Routing, RIP V1/V2, OSPF, BGP

Managment Protocols

DHCP Server/Client, SNMPv1/v2c/v3, Telnet, VLAN, NTP, SNTP, RMON, TFTP, LACP, CoS, TCP, IGMPv1/v2/v3, FTP, IGMP Querier

Security Protocols

SSH, RADIUS, TACACS+

IEEE Standard

System Power Input

Input Voltage AC

100..240 V

Construction

Height

1 U

Dimensions and weight

Width

441.5 mm

Depth

207.5 mm

Height

44 mm

Operating Conditions

Operating Temperature

0..50 °C

Humidity

5-90%

Standards and Certifications

Certifications

CE, FCC Class A

Dimensions

Net Weight

2.8 kg

Gross Weight

3.8 kg

Ethernet

10 Gbit/s

10 Gbit SFP+ Ports

Interfaces

RS-232

Switch Properties

Jumbo Frame Size

12 kB

Supported Protocols

Protocol Layer 3

Static Routing, RIP V1/V2, OSPF, BGP

Managment Protocols

DHCP Server/Client, SNMPv1/v2c/v3, Telnet, VLAN, NTP, SNTP, RMON, TFTP, LACP, CoS, TCP, IGMPv1/v2/v3, FTP, IGMP Querier

Security Protocols

SSH, RADIUS, TACACS+

IEEE Standard

System Power Input

Input Voltage AC

100..240 V

Construction

Height

1 U

Dimensions and weight

Width

441.5 mm

Depth

207.5 mm

Height

44 mm

Operating Conditions

Operating Temperature

0..50 °C

Humidity

5-90%

Standards and Certifications

Certifications

CE, FCC Class A

Dimensions

Net Weight

2.8 kg

Gross Weight

3.8 kg

Ethernet

10 Gbit/s

10 Gbit SFP+ Ports

Interfaces

RS-232

Switch Properties

Jumbo Frame Size

12 kB

Supported Protocols

Protocol Layer 3

Static Routing, RIP V1/V2, OSPF, BGP

Managment Protocols

DHCP Server/Client, SNMPv1/v2c/v3, Telnet, VLAN, NTP, SNTP, RMON, TFTP, LACP, CoS, TCP, IGMPv1/v2/v3, FTP, IGMP Querier

Security Protocols

SSH, RADIUS, TACACS+

IEEE Standard

System Power Input

Input Voltage AC

100..240 V

Construction

Height

1 U

Dimensions and weight

Width

441.5 mm

Depth

207.5 mm

Height

44 mm

Operating Conditions

Operating Temperature

0..50 °C

Humidity

5-90%

Standards and Certifications

Certifications

CE, FCC Class A

Dimensions

Net Weight

2.8 kg

Gross Weight

3.8 kg

Documentation

Documentation

Documentation

Documentation

Get a Quote
