WTP-9H66-19
Wincomm
SKU: 10655000

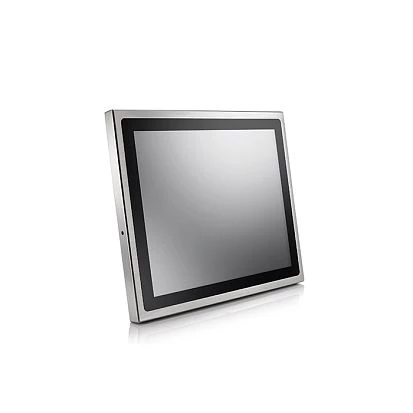

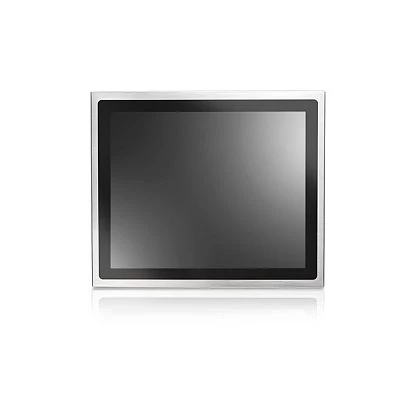

19" TFT LCD Full IP66/69K Fanless Panel PC, Stainless Steel, 1280x1024, 350cd/m2, Resistive Touch Screen, Intel Core i5-1245UE 3.3-4.4GHz, 8GB DDR4 RAM, 256GB SSD, M12(1xGbit LAN, 4xUSB, 2xCOM, DC-In), cables M12, power adapter
Price on request
Available on order
Available on order
Construction
Construction Chassis
Heavy-Duty Steel Chassis
Mounting Configuration

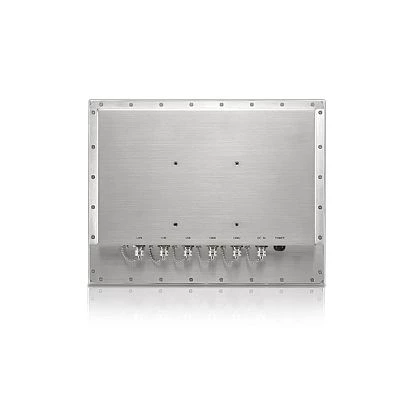

Wall VESA 100, Yoke mounting
Protection Level of Front Side (Panel)
IP66, IP69K
Protection Level of Chassis
IP66, NEMA 4X, IP69K
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
19 "
Maximum resolution
1280x1024 Dots
Aspect Ratio
5:4
Brightness
350 Cd/m2
Contrast Ratio
1000~1
Touch Screen
Touch Screen Type
Resistive
CPU
СPU Generation/Family
Alder Lake
Processor Installed
Intel Core i5-1245UE
Max CPU frequency
4.4 GHz
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
Default on Board Memory
8 GB
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
4
USB 2.0
4
Drive interfaces
SATA 3
1
M.2
1
Installed drive
Drive Type
SSD
Storage Form-Factor
2.5"
Drive Interface
SATA
1st Storage Capacity
256 GB
Extension Slots
Total
1
M.2
2
M.2 Form Factor
2230 E, 3052 B, 3042 B
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors

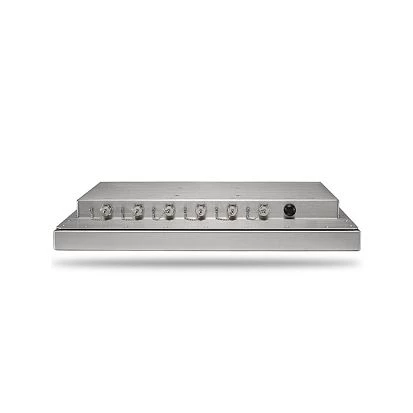

M12 DC-in, 2x8-pin M12 USB, 2x8-pin M12 COM, M12 LAN
System Power Input
Input Voltage DC
12..28 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
120 W
AC input voltage
100-220 V
Software
Operating System Compatibility
Windows 10, Windows 11
Dimensions and weight
Width
458 mm
Height
386 mm
Depth
64 mm
Operating Conditions
Operating Temperature
0..50 °C
Standards and Certifications
Certifications
CE, FCC Class B
Dimensions
Net Weight
11.5 kg
Gross Weight
13 kg
