R17IE3S-65M1
Winmate
SKU: 57672200

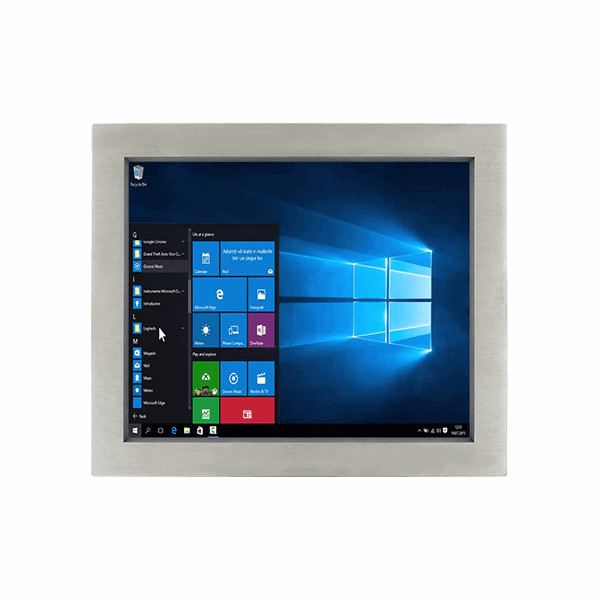

17" Rugged Fanless Panel PC, Stainless Series, IP65 Front, 1280x1024, 350cd/m2, Intel Celeron N6211 1.2GHz CPU, 4GB DDR4 RAM, 128GB SATA SSD, 3xM12 Connectors: (COM, 2xUSB, DC-in), 1xGbE LAN Waterproof, TPM 2.0, 12VDC-in w/ PSU
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Panel, Wall VESA 100, Yoke mounting
Protection Level of Chassis
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
17 "
Maximum resolution
1280x1024 Dots
Brightness
350 Cd/m2
Contrast Ratio
1000~1
Touch Screen
Touch Screen Type
Resistive
CPU
СPU Generation/Family
Elkhart Lake
Processor Installed
Celeron N6211
Socket
FCBGA1493
Max CPU frequency
3 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
ECC
No
Default on Board Memory
4 GB
Maximum Memory
16 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel UHD Graphics
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Wi-Fi
Wi-Fi Standard
Yes
Interfaces
COM Total
1
RS-232
1
USB Total
2
USB 2.0
2
Drive interfaces
SATA 3
1
M.2
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
SATA
1st Storage Capacity
128 GB
Extension Slots
Total
1
M.2
1
LED / Controls
LED
1xHDD LED, Power LED
Controls
On/Off, 1xReset
Connectors
Connectors
M12, M12 USB, M12 DC-in, M12 LAN
System Power Input
Input Voltage DC
12..12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Ubuntu, Windows 10 IoT Enterprise, Windows 11
Dimensions and weight
Width
412 mm
Height
344 mm
Depth
63.3 mm
Operating Conditions
Operating Temperature
0..45 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
12 kg
Gross Weight
14 kg
