WTP-8J66-15W-Resis
Wincomm
SKU: 80394400

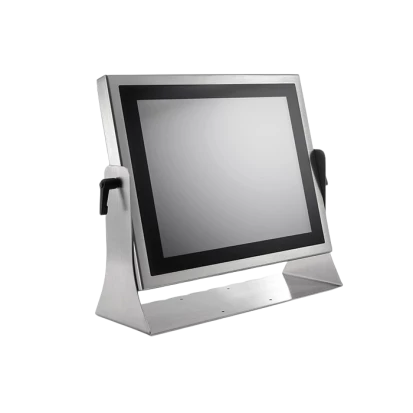

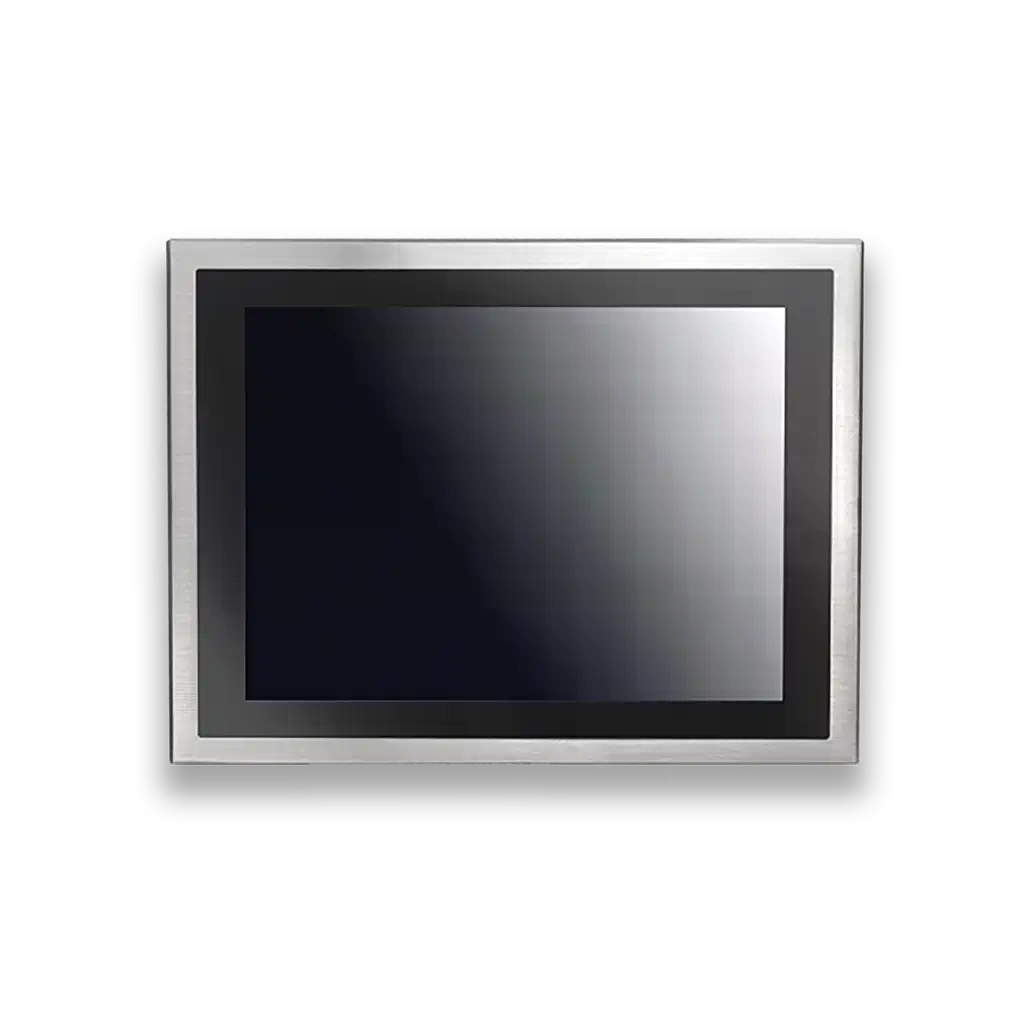

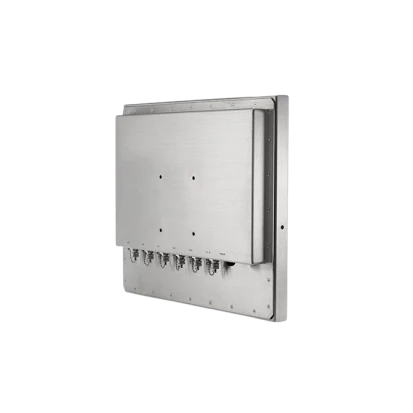

15" Stainless Steel Panel PC, IP66/IP69K/NEMA4X, 1024x768, 450cd/m2, Resistive Touch, Intel Atom x6413E CPU, 4GB DDR4 RAM, 128GB 2.5" SSD, 6xM12 (LAN, 4xUSB, 2xCOM, DC-In), 1xM.2 Key-E, 24VDC-in with 120W Power Adapter
Price on request
Available
Available
Construction
Construction Chassis
Stainless Steel
Mounting Configuration
Wall, Wall VESA 100
Protection Level of Front Side (Panel)
IP66, IP69K
Protection Level of Chassis
IP66, NEMA 4X, IP69K
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
15 "
Maximum resolution
1024x768 Dots
Aspect Ratio
4:3
Brightness
450 Cd/m2
Contrast Ratio
800~1
Touch Screen
Touch Screen Type
Resistive
CPU
СPU Generation/Family
Elkhart Lake
Processor Installed
Atom x6413E
Socket
FCBGA1493
Max CPU frequency
3 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
No
Default on Board Memory
4 GB
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Wi-Fi
Wi-Fi Standard
Yes (Optional)
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
4
USB 2.0
4
Drive interfaces
SATA 3
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Installed drive
Drive Type
SSD
Storage Form-Factor
2.5"
Drive Interface
SATA
1st Storage Capacity
128 GB
Extension Slots
Total
1
M.2
1
M.2 Form Factor
2230 E
LED / Controls
Controls
On/Off
Connectors
Connectors

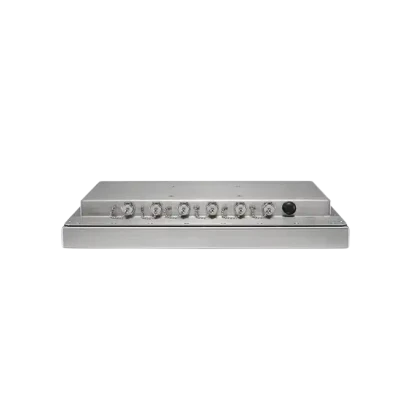

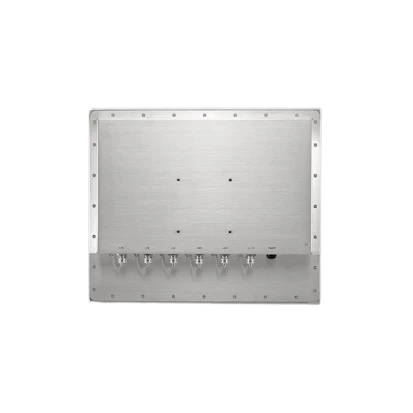

M12 DC-in, M12 LAN, 2xM12 A-code USB, 2xM12 COM
System Power Input
Input Voltage DC
24..24 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
120 W
AC input voltage
100-240 V
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
395 mm
Height
309.5 mm
Depth
58 mm
Operating Conditions
Operating Temperature
-20..60 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE, FCC Class B, VCCI
Dimensions
Net Weight
8.4 kg
Gross Weight
9.6 kg
