R15IT3S-67C3
Winmate
SKU: 10755000

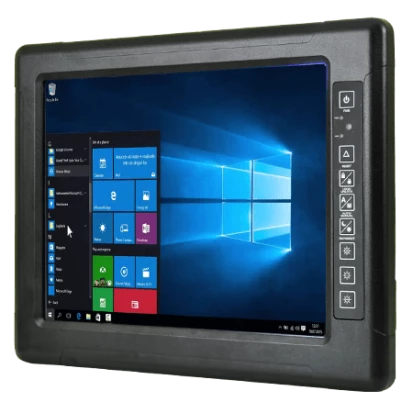

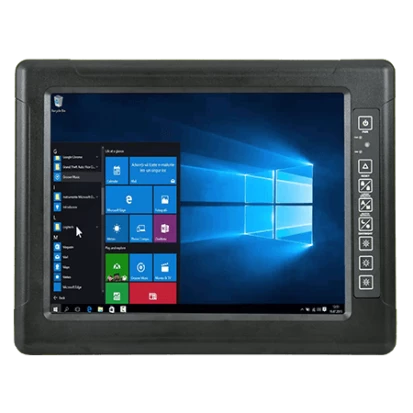

15" Fanless Panel PC, G-WIN Series, Full IP67, 1024x768, 350cd/m2 (HB Opt.), Resistive Touch, Intel Core i5-1135G7 2.4GHz CPU, 4GB DDR4 RAM, 128GB NVME SSD, 3xM12 Connectors: (COM, 2xUSB, DC-in), 1xGbE LAN Waterproof, 9-36VDC-in, -10..55C
Price on request
Available on order
Available on order
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Wall VESA 100, Yoke mounting
Protection Level of Front Side (Panel)
IP67
Protection Level of Chassis
IP67
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
10.1 "
Maximum resolution
1024x768 Dots
Aspect Ratio
4:3
Brightness
350 Cd/m2
Contrast Ratio
2000~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Tiger Lake
Processor Installed
Intel Core i5-1135G7
Socket
FCBGA 1449
Max CPU frequency
4.2 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
ECC
No
Default on Board Memory
4 GB
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
1
RS-232
1
USB Total
2
USB 2.0
2
Drive interfaces
M.2
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
PCIe x4
1st Storage Capacity
128 GB
Extension Slots
Total
1
M.2
1
M.2 Form Factor
2280 M
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors
M12, M12 USB, M12 DC-in, M12 LAN
System Power Input
Input Voltage DC
9..36 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Ubuntu, Windows 11
Dimensions and weight
Width
398 mm
Height
308 mm
Depth
58 mm
Operating Conditions
Operating Temperature
-10..55 °C
Humidity
10-90%
Vibration
MIL-STD-810G Method 514.6 Procedure I
Shock
MIL-STD-810G Method 516.6 Procedure I
Standards and Certifications
Certifications
CE/FCC
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock
Dimensions
Net Weight
4.2 kg
Gross Weight
5 kg
