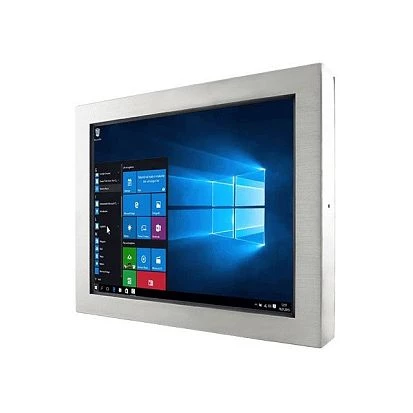

R15IE3S-65C3
Winmate
SKU: 57672100
15" Rugged Fanless Panel PC, 1024x768, 300 cd/m2, IP65 Front, Intel Celeron N6211 1.2GHz CPU, 4GB DDR4 RAM, 128GB M.2 SSD, 1xM12 for RS232, 1xM12 for USB 2.0, 1xRJ45 Waterproof GbE LAN, Audio, 2xM.2, TPM 2.0, 12VDC-in through M12 w/ PSU, 0..45C
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Panel, Wall VESA 100, Yoke mounting
Protection Level of Chassis
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
15 "
Brightness
300 Cd/m2
Contrast Ratio
2000~1
Touch Screen
Touch Screen Type
Resistive
CPU
СPU Generation/Family
Elkhart Lake
Processor Installed
Celeron N6211
Socket
FCBGA1493
Chipset
Chipset
Intel SoC
Memory
ECC
No
Default on Board Memory
4 GB
Maximum Memory
16 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel UHD Graphics
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Wi-Fi
Wi-Fi Standard
Yes
Interfaces
COM Total
1
RS-232
1
USB Total
2
USB 2.0
2
Extension Slots
Total
2
M.2
1
LED / Controls
LED
1xHDD LED, Power LED
Controls
On/Off, 1xReset
Connectors
Connectors
RJ45 Ethernet, M12 USB, M12 DC-in
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Ubuntu, Windows 10 IoT Enterprise, Windows 11
Dimensions and weight
Width
378 mm
Height
301 mm
Depth
60 mm
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
10.5 kg
Gross Weight
12.5 kg
