R19IE3S-SPM1-B

R19IE3S-SPM1-B

Winmate
SKU: 57678500

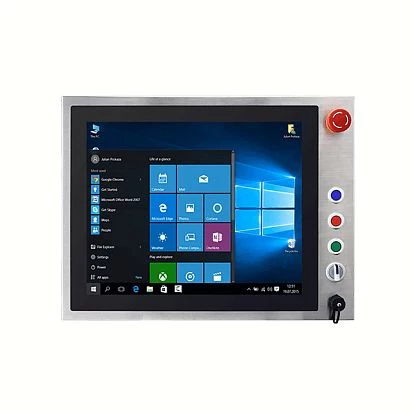

19" Rugged Fanless Panel PC, IP65 Full, 1280x1024, 250 cd/m2, Intel Celeron N6211 1.2GHz CPU, 4GB DDR4 RAM, 128GB M.2 SSD, 1xGbE LAN, 2xM12 (1xCOM, 2xUSB 2.0), 1xFront USB 2.0, CN1/CN2 exp., 12VDC-in M12 with Power Adapter, Ubuntu 20.04
Price on request
Available
Available

Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Wall
Protection Level of Chassis
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
19 "
Brightness
250 Cd/m2
Contrast Ratio
1000~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Elkhart Lake
Processor Installed
Celeron N6211
Socket
FCBGA1493
Chipset
Chipset
Intel SoC
Memory
ECC
No
Default on Board Memory
4 GB
Maximum Memory
16 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel UHD Graphics
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Wi-Fi
Wi-Fi Standard
Yes
Interfaces
COM Total
1
RS-232
1
USB Total
3
USB 2.0
3
Extension Slots
Total
1
M.2
1
LED / Controls
LED
1xHDD LED, Power LED
Controls
On/Off, 1xReset, Control Buttons
Connectors
Connectors
1xUSB, M12 DC-in
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Ubuntu, Windows 10 IoT Enterprise, Windows 11
Dimensions and weight
Width
516 mm
Height
395 mm
Depth
69 mm
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
13.5 kg
Gross Weight
15.5 kg
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Wall
Protection Level of Chassis
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
19 "
Brightness
250 Cd/m2
Contrast Ratio
1000~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Elkhart Lake
Processor Installed
Celeron N6211
Socket
FCBGA1493
Chipset
Chipset
Intel SoC
Memory
ECC
No
Default on Board Memory
4 GB
Maximum Memory
16 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel UHD Graphics
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Wi-Fi
Wi-Fi Standard
Yes
Interfaces
COM Total
1
RS-232
1
USB Total
3
USB 2.0
3
Extension Slots
Total
1
M.2
1
LED / Controls
LED
1xHDD LED, Power LED
Controls
On/Off, 1xReset, Control Buttons
Connectors
Connectors
1xUSB, M12 DC-in
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Ubuntu, Windows 10 IoT Enterprise, Windows 11
Dimensions and weight
Width
516 mm
Height
395 mm
Depth
69 mm
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
13.5 kg
Gross Weight
15.5 kg
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Wall
Protection Level of Chassis
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
19 "
Brightness
250 Cd/m2
Contrast Ratio
1000~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Elkhart Lake
Processor Installed
Celeron N6211
Socket
FCBGA1493
Chipset
Chipset
Intel SoC
Memory
ECC
No
Default on Board Memory
4 GB
Maximum Memory
16 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel UHD Graphics
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Wi-Fi
Wi-Fi Standard
Yes
Interfaces
COM Total
1
RS-232
1
USB Total
3
USB 2.0
3
Extension Slots
Total
1
M.2
1
LED / Controls
LED
1xHDD LED, Power LED
Controls
On/Off, 1xReset, Control Buttons
Connectors
Connectors
1xUSB, M12 DC-in
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Ubuntu, Windows 10 IoT Enterprise, Windows 11
Dimensions and weight
Width
516 mm
Height
395 mm
Depth
69 mm
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
13.5 kg
Gross Weight
15.5 kg
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Wall
Protection Level of Chassis
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
19 "
Brightness
250 Cd/m2
Contrast Ratio
1000~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Elkhart Lake
Processor Installed
Celeron N6211
Socket
FCBGA1493
Chipset
Chipset
Intel SoC
Memory
ECC
No
Default on Board Memory
4 GB
Maximum Memory
16 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel UHD Graphics
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Wi-Fi
Wi-Fi Standard
Yes
Interfaces
COM Total
1
RS-232
1
USB Total
3
USB 2.0
3
Extension Slots
Total
1
M.2
1
LED / Controls
LED
1xHDD LED, Power LED
Controls
On/Off, 1xReset, Control Buttons
Connectors
Connectors
1xUSB, M12 DC-in
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Ubuntu, Windows 10 IoT Enterprise, Windows 11
Dimensions and weight
Width
516 mm
Height
395 mm
Depth
69 mm
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
13.5 kg
Gross Weight
15.5 kg

Documentation
R19IE3S-SPM1-B-Datasheet.pdf
Documentation
R19IE3S-SPM1-B-Datasheet.pdf
Documentation
R19IE3S-SPM1-B-Datasheet.pdf
Documentation
R19IE3S-SPM1-B-Datasheet.pdf
