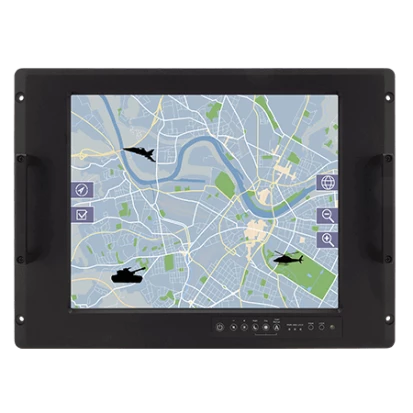

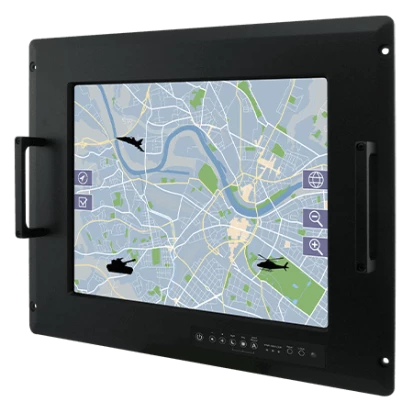

R17IW3S-MLA1-89
Winmate
SKU: 57906000
17" Defence Rack Panel PC, MIL-STD-810G/461E, 1280x1024, 350cd/m2, AR Glass, Intel Core i7-8665UE 1.7GHz CPU, 4GB DDR4 RAM, 128GB SATA SSD, MIL-DTL Ports: (1xGbE LAN, 2xCOM, 1xUSB 2.0), TPM 2.0, 100-240VAC-in, Optional 9-36VDC-in, -20..60C
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
19" Rackmount, Wall VESA 100
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
17 "
Maximum resolution
1280x1024 Dots
Brightness
350 Cd/m2
Contrast Ratio
1000~1
Input Interface
HDMI
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Whiskey Lake
Processor Installed
Intel Core i7-8665UE
Socket
FCBGA 1528
Max CPU frequency
4.4 GHz
Chipset
Chipset
Intel Whiskey lake SoC
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
ECC
No
Default on Board Memory
4 GB
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i210-AT, Intel i219-LM
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
2
RS-232
2
USB Total
1
USB 2.0
1
Drive interfaces
SATA 3
1
M.2
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
SATA
1st Storage Capacity
128 GB
Extension Slots
Total
1
M.2
1
M.2 Form Factor
2242 M
LED / Controls
LED
1xOn/Off LED
Controls
On/Off, Function Keys
Connectors
Connectors
2xDB9, RJ45, 1xUSB, AC Input
System Power Input
Input Voltage AC
100..240 V
Software
Operating System Compatibility
Windows 10 IoT Enterprise
Dimensions and weight
Width
482 mm
Height
354 mm
Depth
80 mm
Operating Conditions
Operating Temperature
-20..60 °C
Humidity
10-95%
Standards and Certifications
Certifications
CE, FCC
MIL-STD-810
MIL-STD-810G Test Method 507.5 Humidity, MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock
Dimensions
Net Weight
7.8 kg
Gross Weight
8.6 kg
