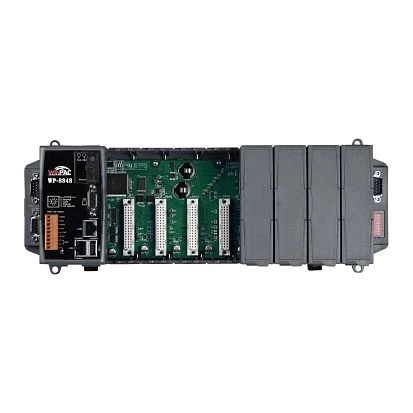

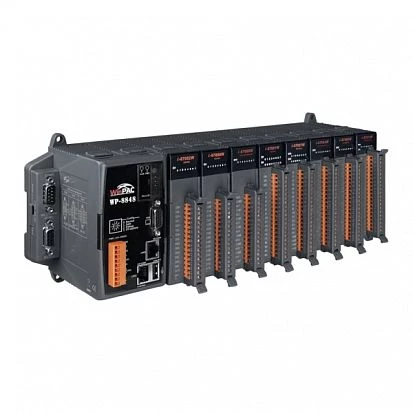

WP-8848-EN

WP-8848-EN

ICP DAS
SKU: 66408200
Win-GRAF based WinPAC-8000 with 8 I/O Slots (Multilanguage Version of OS)
End-of-life product
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
CPU
Processor Installed
Intel PXA270
Max CPU frequency
0.52 GHz
Memory
Default on Board Memory
0.13 GB
SRAM
512 kB
Installed drive
Flash Memory Capacity
96 MB
EEPROM Memory Capacity
16 kB
1st Storage Capacity
2 GB
Drive interfaces
MicroSD
1
MicroSDHC
1
Expansion Module
Quantity of Slots
8
Supported Module
I-8K series, I-87K series
Software
Operating System Installed
Windows CE 5.0
Programming Method
IEC 61131-3, C, C#
Development Software
Win-GRAF, Embedded Visual C++, Visual Studio .NET
Ethernet
10/100 Mbit/s
2
Interfaces
COM Total
4
RS-232
2
RS-485
1
RS-232/485
1
USB Total
1
Additional Functions
Watchdog timer type
Hardware, Software
Graphic
Interfaces
VGA
Dimensions and weight
Width
355 mm
Depth
132 mm
Height
111 mm
System Power Input
Input Voltage DC
10..30 V
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Gross Weight
1 kg
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
CPU
Processor Installed
Intel PXA270
Max CPU frequency
0.52 GHz
Memory
Default on Board Memory
0.13 GB
SRAM
512 kB
Installed drive
Flash Memory Capacity
96 MB
EEPROM Memory Capacity
16 kB
1st Storage Capacity
2 GB
Drive interfaces
MicroSD
1
MicroSDHC
1
Expansion Module
Quantity of Slots
8
Supported Module
I-8K series, I-87K series
Software
Operating System Installed
Windows CE 5.0
Programming Method
IEC 61131-3, C, C#
Development Software
Win-GRAF, Embedded Visual C++, Visual Studio .NET
Ethernet
10/100 Mbit/s
2
Interfaces
COM Total
4
RS-232
2
RS-485
1
RS-232/485
1
USB Total
1
Additional Functions
Watchdog timer type
Hardware, Software
Graphic
Interfaces
VGA
Dimensions and weight
Width
355 mm
Depth
132 mm
Height
111 mm
System Power Input
Input Voltage DC
10..30 V
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Gross Weight
1 kg
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
CPU
Processor Installed
Intel PXA270
Max CPU frequency
0.52 GHz
Memory
Default on Board Memory
0.13 GB
SRAM
512 kB
Installed drive
Flash Memory Capacity
96 MB
EEPROM Memory Capacity
16 kB
1st Storage Capacity
2 GB
Drive interfaces
MicroSD
1
MicroSDHC
1
Expansion Module
Quantity of Slots
8
Supported Module
I-8K series, I-87K series
Software
Operating System Installed
Windows CE 5.0
Programming Method
IEC 61131-3, C, C#
Development Software
Win-GRAF, Embedded Visual C++, Visual Studio .NET
Ethernet
10/100 Mbit/s
2
Interfaces
COM Total
4
RS-232
2
RS-485
1
RS-232/485
1
USB Total
1
Additional Functions
Watchdog timer type
Hardware, Software
Graphic
Interfaces
VGA
Dimensions and weight
Width
355 mm
Depth
132 mm
Height
111 mm
System Power Input
Input Voltage DC
10..30 V
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Gross Weight
1 kg
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
CPU
Processor Installed
Intel PXA270
Max CPU frequency
0.52 GHz
Memory
Default on Board Memory
0.13 GB
SRAM
512 kB
Installed drive
Flash Memory Capacity
96 MB
EEPROM Memory Capacity
16 kB
1st Storage Capacity
2 GB
Drive interfaces
MicroSD
1
MicroSDHC
1
Expansion Module
Quantity of Slots
8
Supported Module
I-8K series, I-87K series
Software
Operating System Installed
Windows CE 5.0
Programming Method
IEC 61131-3, C, C#
Development Software
Win-GRAF, Embedded Visual C++, Visual Studio .NET
Ethernet
10/100 Mbit/s
2
Interfaces
COM Total
4
RS-232
2
RS-485
1
RS-232/485
1
USB Total
1
Additional Functions
Watchdog timer type
Hardware, Software
Graphic
Interfaces
VGA
Dimensions and weight
Width
355 mm
Depth
132 mm
Height
111 mm
System Power Input
Input Voltage DC
10..30 V
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Gross Weight
1 kg
Documentation
Datasheet WP-8xx8
Documentation
Datasheet WP-8xx8
Documentation
Datasheet WP-8xx8
Documentation
Datasheet WP-8xx8
