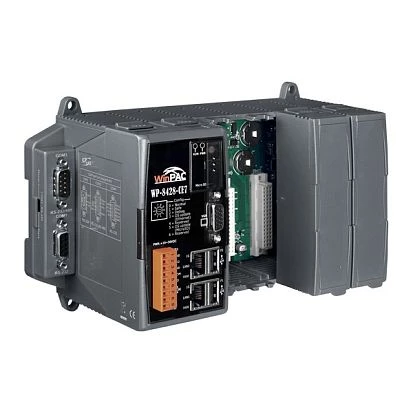

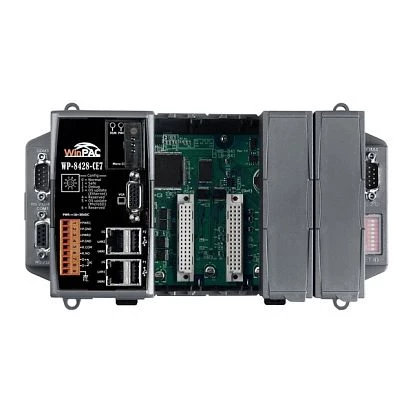

WP-8428-CE7
ICP DAS
SKU: 07697500
PC-compatible Cortex-A8 1GHz Industrial Controller, 512MB DDR3, 256MB Flash, 2xRS-232, 1xRS-485,1xRS-232/485, 2xEthernet, Win CE 7.0, with 4 Expansion Slots
Price on request
Available
Available
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
CPU
Processor Installed
ARM Cortex A8
Max CPU frequency
1 GHz
Memory
Default on Board Memory
0.5 GB
Installed drive
Flash Memory Capacity
256 MB
EEPROM Memory Capacity
16 kB
1st Storage Capacity
2 GB
Drive interfaces
MicroSD
1
MicroSDHC
1
Expansion Module
Quantity of Slots
4
Supported Module
I-8K series, I-87K series
Software
Operating System Installed
Windows CE 7.0
Programming Method
IEC 61131-3, C, C#
Development Software
Win-GRAF
Ethernet
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232
2
RS-485
1
RS-232/485
1
USB Total
2
Additional Functions
Watchdog timer type
Hardware, Software
Graphic
Interfaces
VGA
Dimensions and weight
Width
231 mm
Depth
132 mm
Height
111 mm
System Power Input
Input Voltage DC
10..30 V
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
Certifications
CE/FCC
Dimensions
Gross Weight
1 kg
