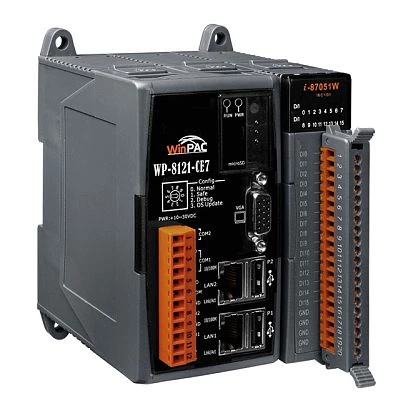

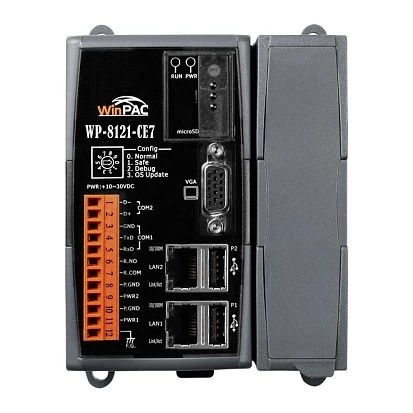

WP-8121-CE7
ICP DAS
SKU: 07276100
PC-compatible Cortex-A8 1GHz Industrial Controller, 512MB DDR3, 256MB Flash, 1xRS-232, 1xRS-485, 2xEthernet, Win CE 7.0, with 1 Expansion Slot
Price on request
Available on order
Available on order
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
CPU
Processor Installed
ARM Cortex A8
Max CPU frequency
1 GHz
Memory
Default on Board Memory
0.5 GB
Installed drive
Flash Memory Capacity
256 MB
EEPROM Memory Capacity
16 kB
1st Storage Capacity
4 GB
Drive interfaces
MicroSD
1
MicroSDHC
1
Expansion Module
Quantity of Slots
1
Supported Module
I-8K series, I-87K series
Software
Operating System Installed
Windows Embedded Compact 7
Programming Method
C/C++
Development Software
Embedded Visual C++, Visual Studio .NET
Ethernet
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232
1
RS-485
1
USB Total
2
Additional Functions
Watchdog timer type
Hardware, Software
Graphic
Interfaces
VGA
Dimensions and weight
Width
95 mm
Depth
132 mm
Height
111 mm
System Power Input
Input Voltage DC
10..30 V
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Gross Weight
1 kg
