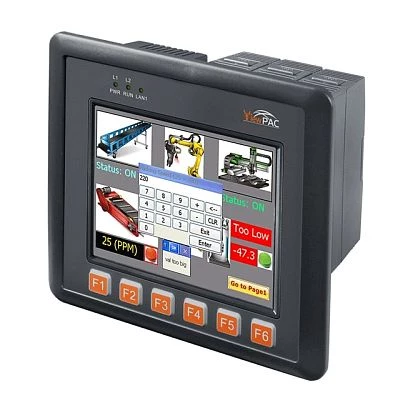

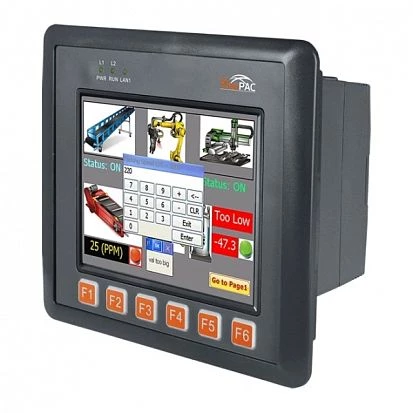

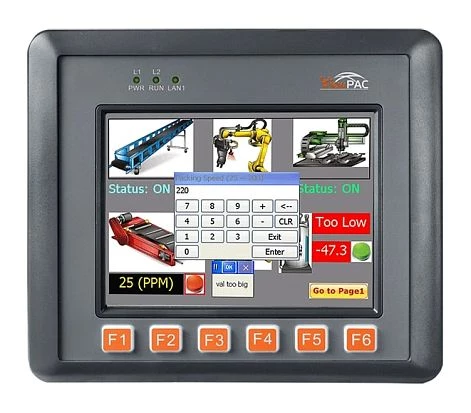

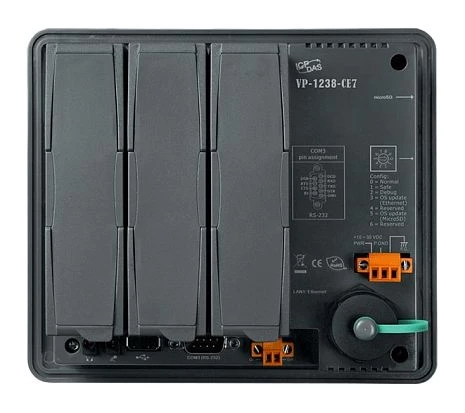

VP-1238-CE7

VP-1238-CE7

ICP DAS
SKU: 66482300
Win-GRAF based ViewPAC with 5.7" LCD and 3 I/O slots (RoHS)
Price on request
Available
Available
Construction
Construction Chassis
Plastic Chassis with Aluminum Heatsink
Mounting Configuration
Panel, Wall VESA 75
Protection Level of Chassis
IP65, NEMA4
Display
Display Type
LCD TFT
Diagonal
5.7 "
Maximum resolution
640x480 Dots
CPU
Processor Installed
ARM Cortex A8
Max CPU frequency
1 GHz
Memory
Default on Board Memory
0.5 GB
Installed drive
Flash Memory Capacity
256 MB
EEPROM Memory Capacity
16 kB
MRAM Memory Capacity
128 kB
Drive interfaces
SD Slots
1
Expansion Module
Quantity of Slots
3
Supported Module
I-8K series, I-87K series
Software
Operating System Installed
Windows CE 7.0
Programming Method
IEC 61131-3, C, C#
Development Software
Win-GRAF
Ethernet
10/100/1000 Mbit/s
1
Interfaces
COM Total
2
RS-232
1
RS-485
1
USB Total
1
Additional Functions
Watchdog timer type
Hardware
Supported Protocols
Industrial Protocols
Modbus TCP server, Modbus TCP client, Modbus RTU master, Modbus RTU slave, Modbus UDP master, Modbus ASCII master, DCON master
Dimensions and weight
Width
182 mm
Depth
125 mm
Height
158 mm
System Power Input
Input Voltage DC
10..30 V
Operating Conditions
Operating Temperature
-20..70 °C
Dimensions
Net Weight
0.2 kg
Gross Weight
0.35 kg
Construction
Construction Chassis
Plastic Chassis with Aluminum Heatsink
Mounting Configuration
Panel, Wall VESA 75
Protection Level of Chassis
IP65, NEMA4
Display
Display Type
LCD TFT
Diagonal
5.7 "
Maximum resolution
640x480 Dots
CPU
Processor Installed
ARM Cortex A8
Max CPU frequency
1 GHz
Memory
Default on Board Memory
0.5 GB
Installed drive
Flash Memory Capacity
256 MB
EEPROM Memory Capacity
16 kB
MRAM Memory Capacity
128 kB
Drive interfaces
SD Slots
1
Expansion Module
Quantity of Slots
3
Supported Module
I-8K series, I-87K series
Software
Operating System Installed
Windows CE 7.0
Programming Method
IEC 61131-3, C, C#
Development Software
Win-GRAF
Ethernet
10/100/1000 Mbit/s
1
Interfaces
COM Total
2
RS-232
1
RS-485
1
USB Total
1
Additional Functions
Watchdog timer type
Hardware
Supported Protocols
Industrial Protocols
Modbus TCP server, Modbus TCP client, Modbus RTU master, Modbus RTU slave, Modbus UDP master, Modbus ASCII master, DCON master
Dimensions and weight
Width
182 mm
Depth
125 mm
Height
158 mm
System Power Input
Input Voltage DC
10..30 V
Operating Conditions
Operating Temperature
-20..70 °C
Dimensions
Net Weight
0.2 kg
Gross Weight
0.35 kg
Construction
Construction Chassis
Plastic Chassis with Aluminum Heatsink
Mounting Configuration
Panel, Wall VESA 75
Protection Level of Chassis
IP65, NEMA4
Display
Display Type
LCD TFT
Diagonal
5.7 "
Maximum resolution
640x480 Dots
CPU
Processor Installed
ARM Cortex A8
Max CPU frequency
1 GHz
Memory
Default on Board Memory
0.5 GB
Installed drive
Flash Memory Capacity
256 MB
EEPROM Memory Capacity
16 kB
MRAM Memory Capacity
128 kB
Drive interfaces
SD Slots
1
Expansion Module
Quantity of Slots
3
Supported Module
I-8K series, I-87K series
Software
Operating System Installed
Windows CE 7.0
Programming Method
IEC 61131-3, C, C#
Development Software
Win-GRAF
Ethernet
10/100/1000 Mbit/s
1
Interfaces
COM Total
2
RS-232
1
RS-485
1
USB Total
1
Additional Functions
Watchdog timer type
Hardware
Supported Protocols
Industrial Protocols
Modbus TCP server, Modbus TCP client, Modbus RTU master, Modbus RTU slave, Modbus UDP master, Modbus ASCII master, DCON master
Dimensions and weight
Width
182 mm
Depth
125 mm
Height
158 mm
System Power Input
Input Voltage DC
10..30 V
Operating Conditions
Operating Temperature
-20..70 °C
Dimensions
Net Weight
0.2 kg
Gross Weight
0.35 kg
Construction
Construction Chassis
Plastic Chassis with Aluminum Heatsink
Mounting Configuration
Panel, Wall VESA 75
Protection Level of Chassis
IP65, NEMA4
Display
Display Type
LCD TFT
Diagonal
5.7 "
Maximum resolution
640x480 Dots
CPU
Processor Installed
ARM Cortex A8
Max CPU frequency
1 GHz
Memory
Default on Board Memory
0.5 GB
Installed drive
Flash Memory Capacity
256 MB
EEPROM Memory Capacity
16 kB
MRAM Memory Capacity
128 kB
Drive interfaces
SD Slots
1
Expansion Module
Quantity of Slots
3
Supported Module
I-8K series, I-87K series
Software
Operating System Installed
Windows CE 7.0
Programming Method
IEC 61131-3, C, C#
Development Software
Win-GRAF
Ethernet
10/100/1000 Mbit/s
1
Interfaces
COM Total
2
RS-232
1
RS-485
1
USB Total
1
Additional Functions
Watchdog timer type
Hardware
Supported Protocols
Industrial Protocols
Modbus TCP server, Modbus TCP client, Modbus RTU master, Modbus RTU slave, Modbus UDP master, Modbus ASCII master, DCON master
Dimensions and weight
Width
182 mm
Depth
125 mm
Height
158 mm
System Power Input
Input Voltage DC
10..30 V
Operating Conditions
Operating Temperature
-20..70 °C
Dimensions
Net Weight
0.2 kg
Gross Weight
0.35 kg
Documentation
Datasheet VP-1238-CE7 Quick Start VP-1238-CE7 User Manual Win-GRAF
Documentation
Datasheet VP-1238-CE7 Quick Start VP-1238-CE7 User Manual Win-GRAF
Documentation
Datasheet VP-1238-CE7 Quick Start VP-1238-CE7 User Manual Win-GRAF
Documentation
Datasheet VP-1238-CE7 Quick Start VP-1238-CE7 User Manual Win-GRAF
