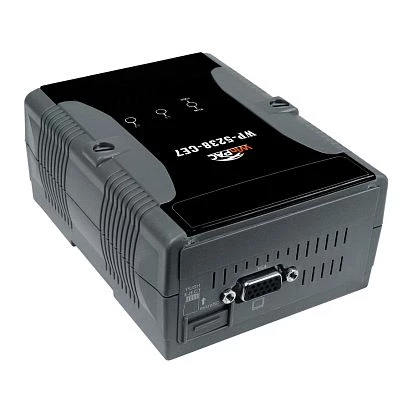

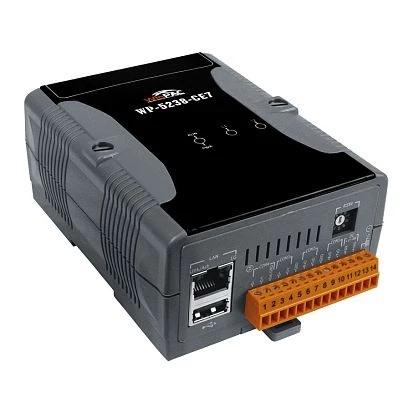

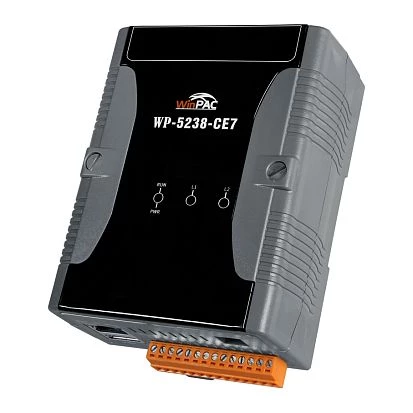

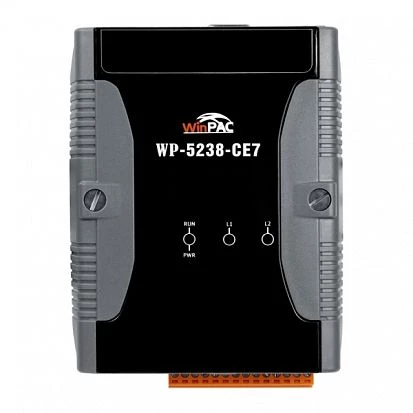

WP-5238-CE7

WP-5238-CE7

ICP DAS
SKU: 08764400
PC-compatible Cortex-A8 1GHz Industrial Controller, 256Mb Flash, 256Mb DDR3 SDRAM, VGA, 2xRS-232, 2xRS-485, 1xEthernet, Win CE 7.0, Win-GRAF
Price on request
Available
Available
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
CPU
Processor Installed
ARM Cortex A8
Max CPU frequency
1 GHz
Memory
Default on Board Memory
0.5 GB
Installed drive
Flash Memory Capacity
256 MB
EEPROM Memory Capacity
64 kB
1st Storage Capacity
4 GB
Drive interfaces
MicroSD
1
MicroSDHC
1
Expansion Module
Quantity of Slots
1
Supported Module
XV - board
Software
Operating System Installed
Windows CE 7.0
Programming Method
IEC 61131-3, C, C#
Development Software
Win-GRAF, Visual Studio .NET
Ethernet
10/100/1000 Mbit/s
1
Interfaces
COM Total
4
RS-232
2
RS-485
2
USB Total
1
Additional Functions
Watchdog timer type
Hardware, Software
Connectors
Connectors
DB15 VGA, RJ45 Ethernet, 1xUSB, Screw Terminal, MicroSD card slot
Graphic
Interfaces
VGA
Dimensions and weight
Width
91 mm
Depth
52 mm
Height
132 mm
System Power Input
Input Voltage DC
10..30 V
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
Certifications
CE, FCC
Dimensions
Gross Weight
0.42 kg
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
CPU
Processor Installed
ARM Cortex A8
Max CPU frequency
1 GHz
Memory
Default on Board Memory
0.5 GB
Installed drive
Flash Memory Capacity
256 MB
EEPROM Memory Capacity
64 kB
1st Storage Capacity
4 GB
Drive interfaces
MicroSD
1
MicroSDHC
1
Expansion Module
Quantity of Slots
1
Supported Module
XV - board
Software
Operating System Installed
Windows CE 7.0
Programming Method
IEC 61131-3, C, C#
Development Software
Win-GRAF, Visual Studio .NET
Ethernet
10/100/1000 Mbit/s
1
Interfaces
COM Total
4
RS-232
2
RS-485
2
USB Total
1
Additional Functions
Watchdog timer type
Hardware, Software
Connectors
Connectors
DB15 VGA, RJ45 Ethernet, 1xUSB, Screw Terminal, MicroSD card slot
Graphic
Interfaces
VGA
Dimensions and weight
Width
91 mm
Depth
52 mm
Height
132 mm
System Power Input
Input Voltage DC
10..30 V
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
Certifications
CE, FCC
Dimensions
Gross Weight
0.42 kg
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
CPU
Processor Installed
ARM Cortex A8
Max CPU frequency
1 GHz
Memory
Default on Board Memory
0.5 GB
Installed drive
Flash Memory Capacity
256 MB
EEPROM Memory Capacity
64 kB
1st Storage Capacity
4 GB
Drive interfaces
MicroSD
1
MicroSDHC
1
Expansion Module
Quantity of Slots
1
Supported Module
XV - board
Software
Operating System Installed
Windows CE 7.0
Programming Method
IEC 61131-3, C, C#
Development Software
Win-GRAF, Visual Studio .NET
Ethernet
10/100/1000 Mbit/s
1
Interfaces
COM Total
4
RS-232
2
RS-485
2
USB Total
1
Additional Functions
Watchdog timer type
Hardware, Software
Connectors
Connectors
DB15 VGA, RJ45 Ethernet, 1xUSB, Screw Terminal, MicroSD card slot
Graphic
Interfaces
VGA
Dimensions and weight
Width
91 mm
Depth
52 mm
Height
132 mm
System Power Input
Input Voltage DC
10..30 V
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
Certifications
CE, FCC
Dimensions
Gross Weight
0.42 kg
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
CPU
Processor Installed
ARM Cortex A8
Max CPU frequency
1 GHz
Memory
Default on Board Memory
0.5 GB
Installed drive
Flash Memory Capacity
256 MB
EEPROM Memory Capacity
64 kB
1st Storage Capacity
4 GB
Drive interfaces
MicroSD
1
MicroSDHC
1
Expansion Module
Quantity of Slots
1
Supported Module
XV - board
Software
Operating System Installed
Windows CE 7.0
Programming Method
IEC 61131-3, C, C#
Development Software
Win-GRAF, Visual Studio .NET
Ethernet
10/100/1000 Mbit/s
1
Interfaces
COM Total
4
RS-232
2
RS-485
2
USB Total
1
Additional Functions
Watchdog timer type
Hardware, Software
Connectors
Connectors
DB15 VGA, RJ45 Ethernet, 1xUSB, Screw Terminal, MicroSD card slot
Graphic
Interfaces
VGA
Dimensions and weight
Width
91 mm
Depth
52 mm
Height
132 mm
System Power Input
Input Voltage DC
10..30 V
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
Certifications
CE, FCC
Dimensions
Gross Weight
0.42 kg
Documentation
Datasheet WP-5238-CE7 User Manual WP-5000-CE7 User Manual Win-GRAF
Documentation
Datasheet WP-5238-CE7 User Manual WP-5000-CE7 User Manual Win-GRAF
Documentation
Datasheet WP-5238-CE7 User Manual WP-5000-CE7 User Manual Win-GRAF
Documentation
Datasheet WP-5238-CE7 User Manual WP-5000-CE7 User Manual Win-GRAF
