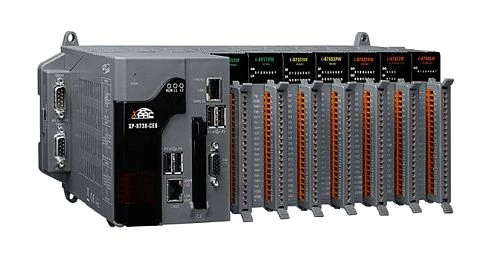

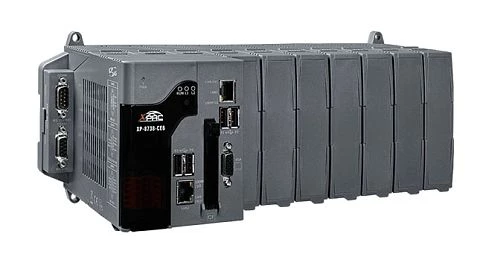

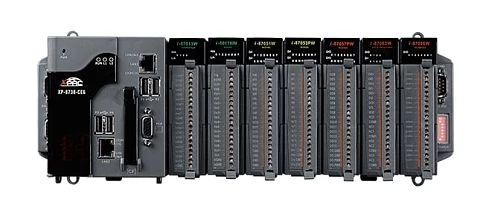

XP-8738-CE6

XP-8738-CE6

ICP DAS
SKU: 08054200
Standard XP-8000-CE6 with x86 CPU, 1.0 GHz, dual-core, 2GB DDR3, 32GB Flash, 2xRS-232, 1xRS-485, 1xRS-232/485, VGA, 2xEthernet, Windows CE6 OS, and 7 I/O Slot (RoHS), Win-GRAF based
Price on request
Available
Available
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
CPU
Processor Installed
RDC R3600
Max CPU frequency
1 GHz
Memory
Default on Board Memory
2 GB
Installed drive
Flash Memory Capacity
32 MB
EEPROM Memory Capacity
16 kB
MRAM Memory Capacity
512 kB
1st Storage Capacity
8 GB
Drive interfaces
CFast Slots
1
Expansion Module
Quantity of Slots
7
Supported Module
I-8K series, I-87K series
Software
Operating System Installed
Windows CE 6.0
Programming Method
IEC 61131-3, C, C#
Development Software
Win-GRAF, BCB, Delphi, Visual Studio .NET, VC, VB
Ethernet
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232
2
RS-485
1
RS-232/485
1
USB Total
4
Additional Functions
Watchdog timer type
Hardware, Software
Graphic
Interfaces
VGA
Dimensions and weight
Width
169 mm
Depth
125 mm
Height
132 mm
System Power Input
Input Voltage DC
10..30 V
Power Supply Reserve input Voltage DC
10..30 V
Redundant power input
Yes
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Gross Weight
1 kg
