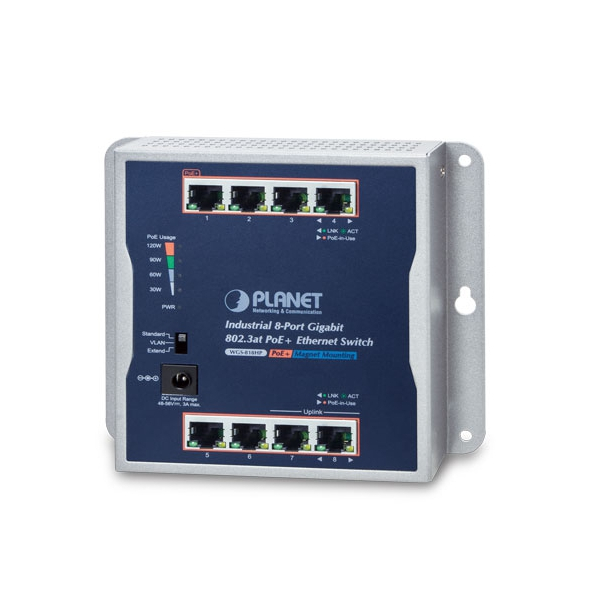

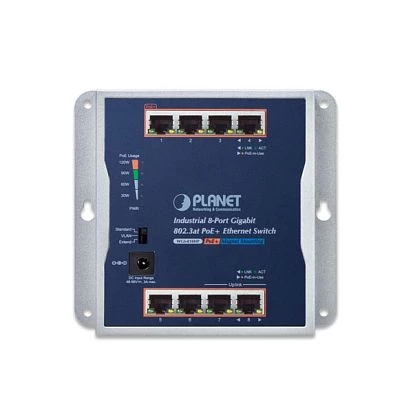

WGS-818HP
Planet
SKU: 57061400
Industrial Ethernet Switch with 8x1000 Base-T, 8x 802.3at PoE+ injector ports, 120W PoE budget, 4kV ESD protection, 48-56VDC, -20..60C Operating Temperature, Wall/DIN Rail mount
Price on request
Available
Available
Ethernet
10/100/1000 Mbit/s
8
PoE+ 10/100/1000 Mbit/s
8
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, EE 802.3af for Power-over-Ethernet, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3u for 100BaseT(X)
System Power Input
Input Voltage DC
48..56 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
148 mm
Depth
134 mm
Height
25 mm
Operating Conditions
Operating Temperature
-20..60 °C
Standards and Certifications
Certifications
CE
Dimensions
Net Weight
0.5 kg
Gross Weight
1.5 kg
Ethernet
10/100/1000 Mbit/s
8
PoE+ 10/100/1000 Mbit/s
8
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, EE 802.3af for Power-over-Ethernet, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3u for 100BaseT(X)
System Power Input
Input Voltage DC
48..56 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
148 mm
Depth
134 mm
Height
25 mm
Operating Conditions
Operating Temperature
-20..60 °C
Standards and Certifications
Certifications
CE
Dimensions
Net Weight
0.5 kg
Gross Weight
1.5 kg
Ethernet
10/100/1000 Mbit/s
8
PoE+ 10/100/1000 Mbit/s
8
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, EE 802.3af for Power-over-Ethernet, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3u for 100BaseT(X)
System Power Input
Input Voltage DC
48..56 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
148 mm
Depth
134 mm
Height
25 mm
Operating Conditions
Operating Temperature
-20..60 °C
Standards and Certifications
Certifications
CE
Dimensions
Net Weight
0.5 kg
Gross Weight
1.5 kg
Ethernet
10/100/1000 Mbit/s
8
PoE+ 10/100/1000 Mbit/s
8
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, EE 802.3af for Power-over-Ethernet, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3u for 100BaseT(X)
System Power Input
Input Voltage DC
48..56 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
148 mm
Depth
134 mm
Height
25 mm
Operating Conditions
Operating Temperature
-20..60 °C
Standards and Certifications
Certifications
CE
Dimensions
Net Weight
0.5 kg
Gross Weight
1.5 kg
Documentation
Documentation
Documentation
Documentation
Get a Quote
Planet
SKU: 57061400
