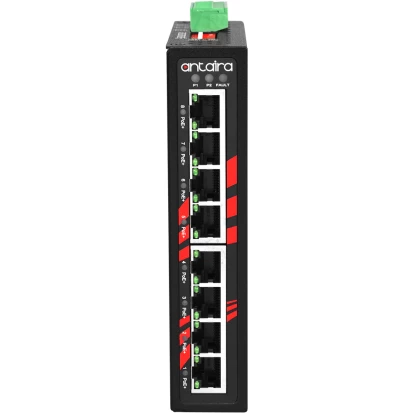

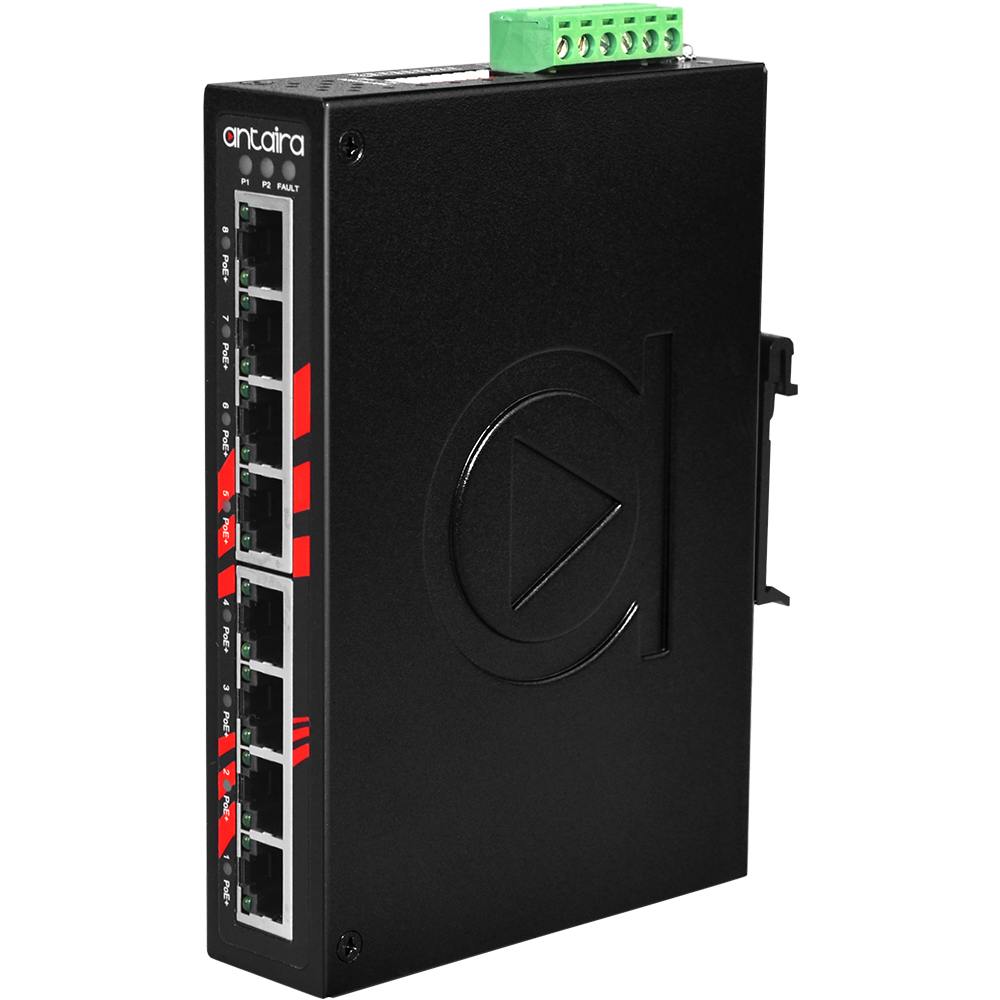

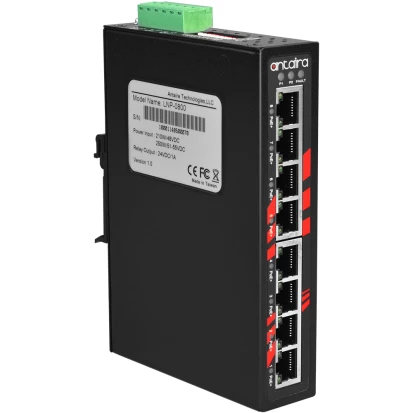

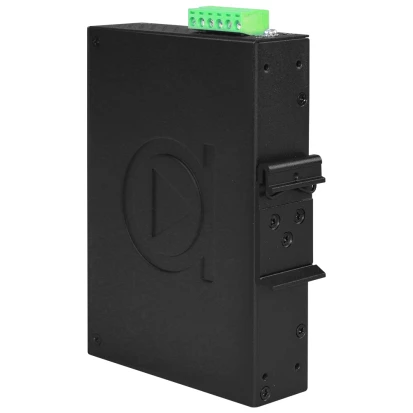

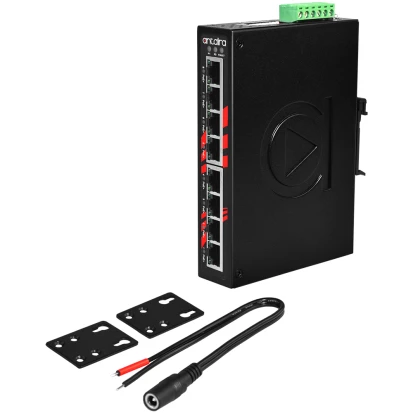

LNP-0800
Antaira Technologies
SKU: 80198700
Industrial PoE+ Unmanaged Ethernet Switch, IP30, 8x10/100Base-TX with PoE+, 48..55VDC, Operating Temperature -10..70 C
262,03 €
Price exlc. VAT and shipping costs
Available
Available
Ethernet
Total Ethernet
8
10/100 Mbit/s
8
PoE/PoE+ 10/100 Mbit/s
8
Switch Properties
MAC Table Size
2000
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3x for Flow Control, IEEE 802.3u for 100BaseT(X)
System Power Input
Input Voltage DC
48..55 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount
Protection Level of Chassis
IP30
Dimensions and weight
Width
30 mm
Depth
142 mm
Height
99 mm
Operating Conditions
Operating Temperature
-10..70 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE, FCC Class A
EMS
EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-2, EN 61000-6-4
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.45 kg
Gross Weight
1 kg
