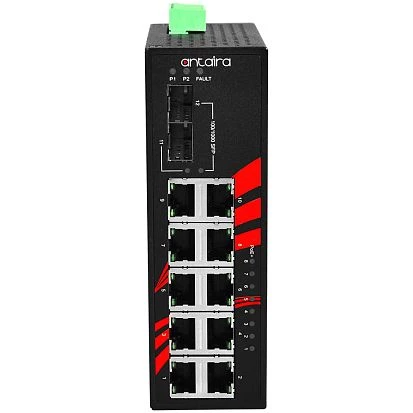

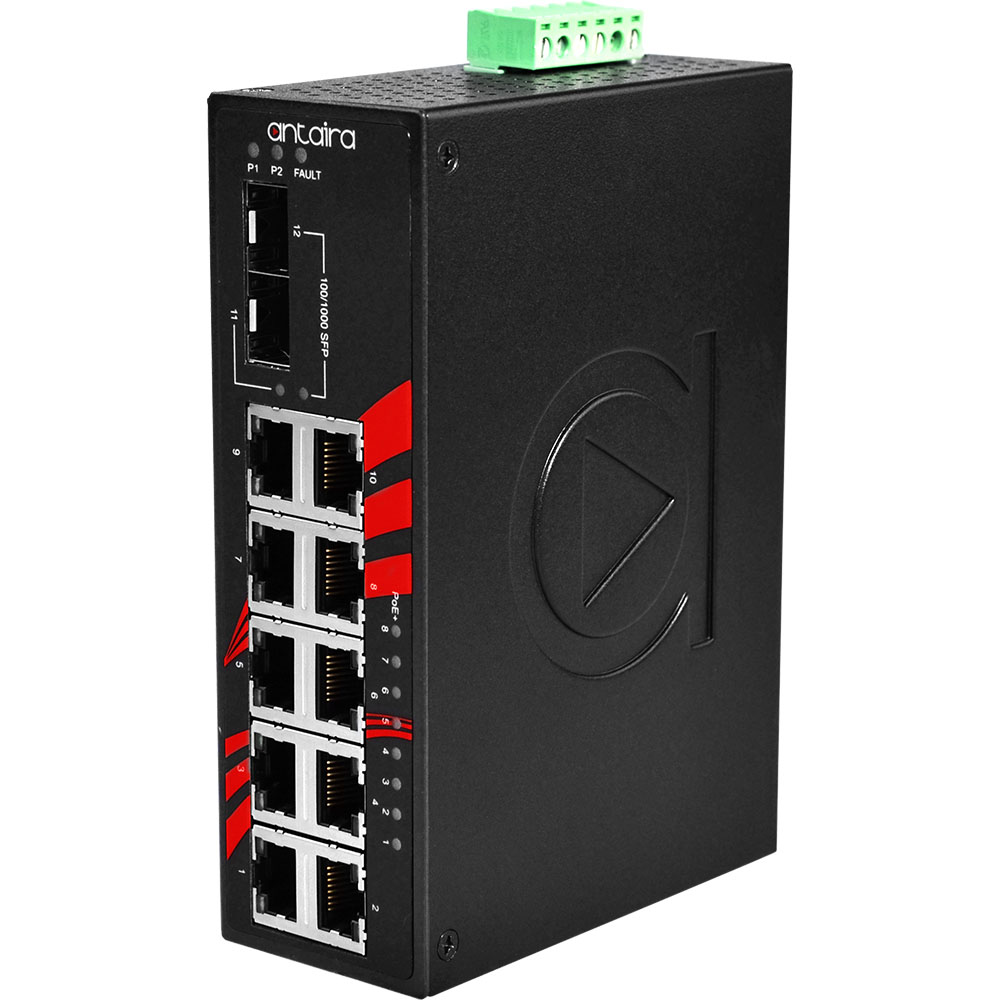

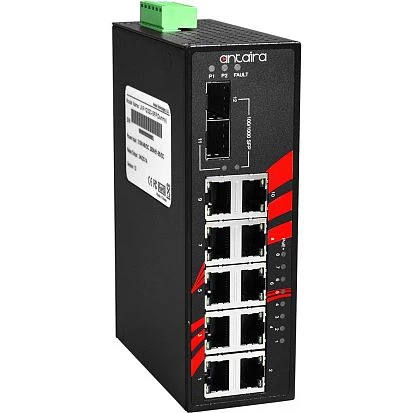

LNP-1202G-SFP
Antaira Technologies
SKU: 80183100
Industrial Unmanaged PoE+ Ethernet Switch, IP30, 10x10/100/1000Base-TX (PoE+ 30W/port), 2x100/1000 SFP, Power Input 48..55 VDC, Operating Temperature -10...70 C
Price on request
Available
Available
Ethernet
Total Ethernet
10
10/100/1000 Mbit/s
10
SFP 100/1000 Mbit Ports
2
PoE+ 10/100/1000 Mbit/s
8
Switch Properties
MAC Table Size
8000
Jumbo Frame Size
9.6 kB
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3u for 100BaseT(X)
System Power Input
Input Voltage DC
48..55 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration

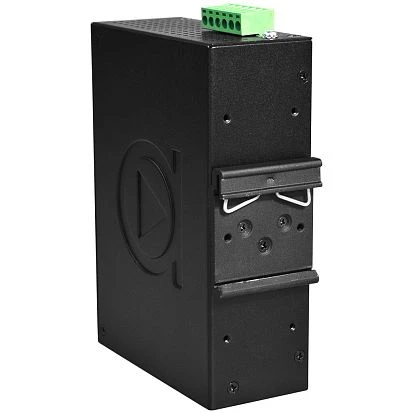

DIN-Rail mount
Protection Level of Chassis
IP30
Dimensions and weight
Width
46 mm
Depth
99 mm
Height
142 mm
Operating Conditions
Operating Temperature
-10..70 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE, FCC Class A
EMS
EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-2, EN 61000-6-4
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.8 kg
Gross Weight
1 kg
