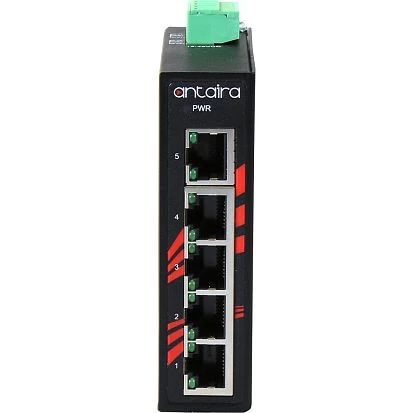

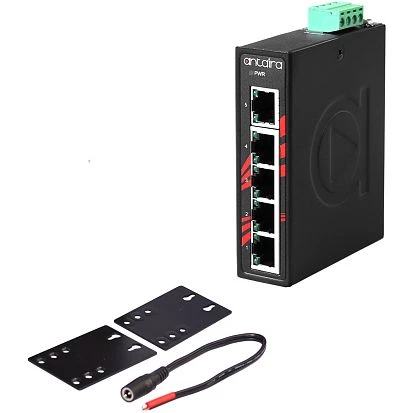

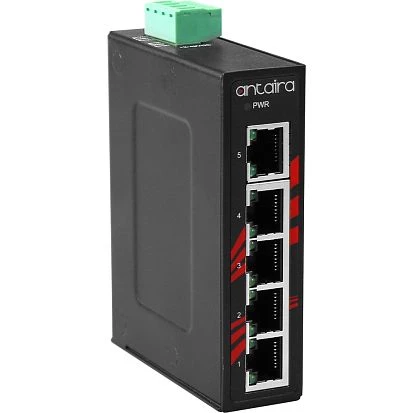

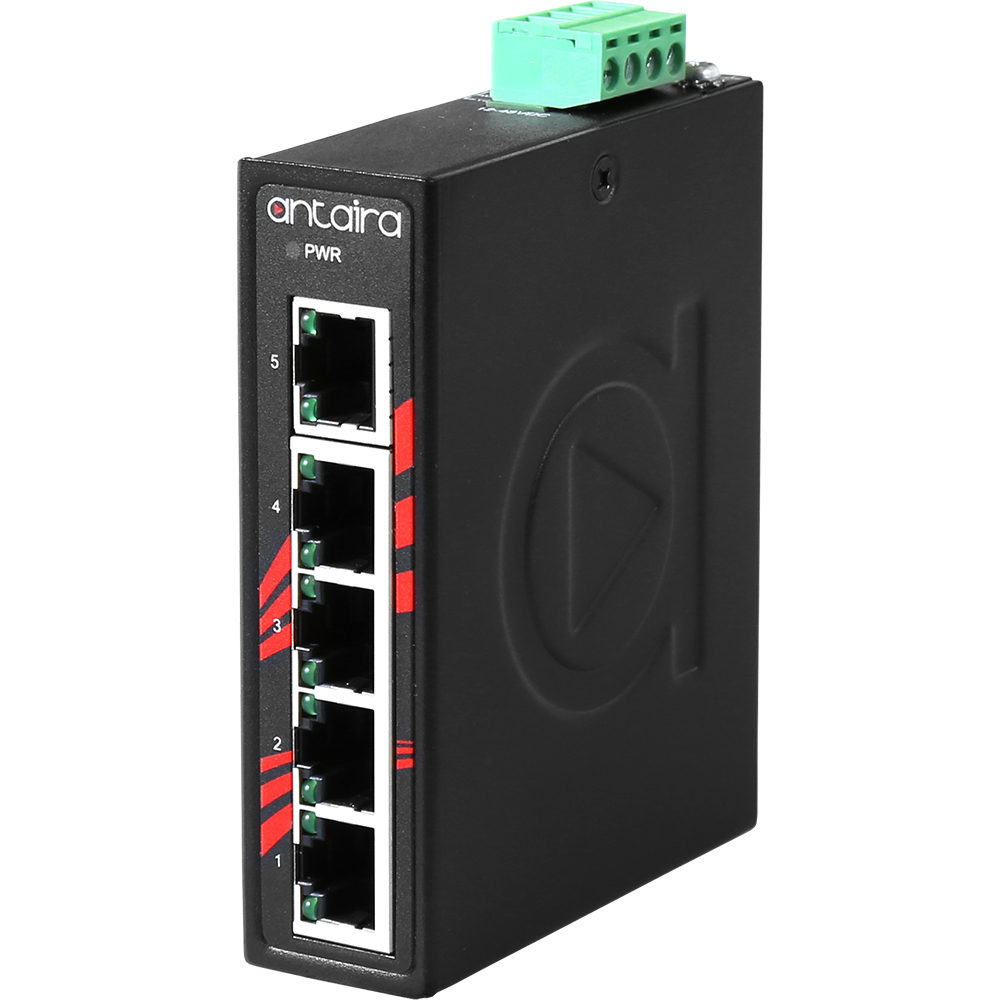

LNX-C500
Antaira Technologies
SKU: 80182800
Industrial Unmanaged Ethernet Switch, IP30, 5x10/100Base-TX, 12..48VDC, Operating Temperature -10..70 C
Price on request
Available
Available
Ethernet
Total Ethernet
5
10/100 Mbit/s
5
Switch Properties
MAC Table Size
8000
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X)
System Power Input
Input Voltage DC
12..48 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount
Protection Level of Chassis
IP30
Dimensions and weight
Width
26 mm
Depth
95 mm
Height
75 mm
Operating Conditions
Operating Temperature
-10..70 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE, FCC Class A
EMS
EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8
Safety
UL 61010-2-201
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.45 kg
Gross Weight
1 kg
