VTC-7260-Series

VTC-7260-Series

NEXCOM
SKU: 57540100

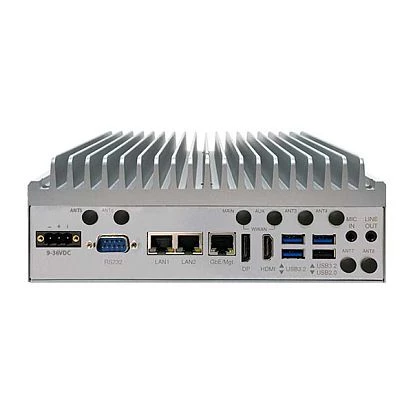

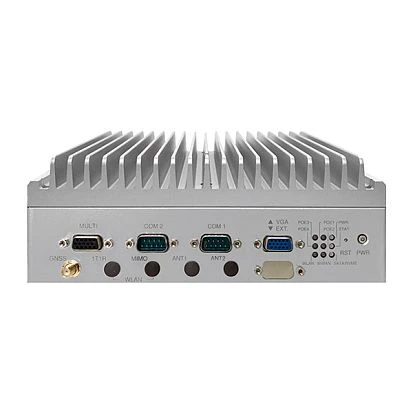

Vehicle Computer, Intel 11th gen Core i7/i5 CPU, up to 64GB DDR4 RAM, VGA, DP, HDMI, 2x2.5GbE LAN, 1xGbE LAN, 4xUSB, 3xCOM, 1x8-bit DIO, 1x2.5" Drive Bay, 1xmSATA, GPS, 2xSIM, 3xM.2, 1xCAN, 9..36VDC-in, -30..65C Wide temp.
Price on request
Available
Available
System configuration
Price with VAT
Price on request
Price on request
System configuration
Price with VAT
Price on request
Price on request
Construction
Construction Chassis
Metal Chassis
Type
Fanless
CPU
СPU Generation/Family
Tiger Lake
Socket
FCBGA 1449
Chipset
Chipset
Intel SoC
Memory
Socket Type
2xSODIMM
ECC
Yes
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel Iris Xe Graphics
Ethernet
Controller Type
Intel i225IT
Total Ethernet
3
10/100/1000 Mbit/s
1
2,5 Gbit/s
2
Wi-Fi
Wi-Fi Standard
Yes
Interfaces
COM Total
4
RS-232
1
RS-232/422/485
2
USB Total
6
USB 2.0
1
Digital Input-Output
Channels of DIO
8
Industrial Interfaces
CAN Port
1
Storage Cage
2.5" Cage Intenal
1
Extension Slots
Total
5
M.2
3
Mini-PCIe/Mini Card
2
Connectors
Connectors
3xDB9, DB15 VGA, HDMI, 3xRJ45 Ethernet, 4xUSB, Mic In, Line Out, Display Port, SIM Card Slot, DC input (terminal block)
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 10, Ubuntu 18.04 LTS, Windows 11
Dimensions and weight
Width
210 mm
Height
75 mm
Depth
173 mm
Operating Conditions
Vibration
MIL-STD-810H, 514.8C Procedure 6, Category 4; IEC 60068-2-64: 2.0g@5~500Hz
Shock
MIL-STD-810G, 516.6 Procedure I, trucks and semi-trailers=40g; Crash hazard: Procedure V, ground equipment=75g
Standards and Certifications
Certifications
CE, FCC Class A
MIL-STD-810
MIL-STD-810G Test Method 516.6 Shock, MIL-STD-810H Test Method 514.8 Vibration
Automotive
e13 Mark
Dimensions
