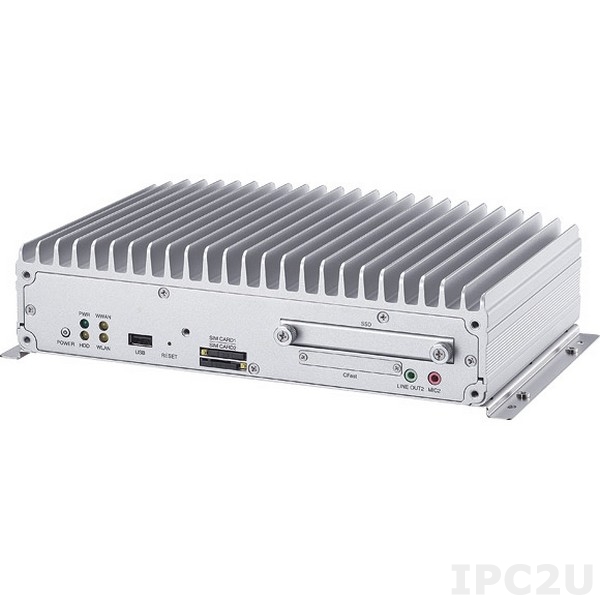

VTC-7110-BK
NEXCOM
SKU: 06193300
Embedded Server Intel Core i7-2610UE 1.5GHz CPU, 2GB DDR3, VGA, LVDS, 3xUSB, 2xGbit LAN, RS232, RS485/422, 4xDI/4DO, Audio, CFast Slot, 2.5" SATA Drive Bay, 2xMini-PCIe, 9..36V DC-In
End-of-life product
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Embedded, Wall
Type
Fanless
CPU
Processor Installed
Intel Core i7-2610UE
Max CPU frequency
2.4 GHz
Chipset
Chipset
Intel QM67
Memory
Form-factor
DDR3
Socket Type
1xSODIMM
Default on Board Memory
2 GB
Maximum Memory
8 GB
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232
1
RS-422/485
1
USB Total
3
USB 2.0
3
Digital Input-Output
Channels of DIO
8
Drive interfaces
CFast Slots
1
Storage Cage
Number Of Cage External
1
2.5" Cage External
1
Extension Slots
Total
2
Mini-PCIe/Mini Card
2
SIM Card slots
2
Antenna characteristics
Cellular interfaces
3G (Optional)
Additional Functions
GPS
GPS
Connectors
Connectors
2xDB9, DB15 VGA, 2xRJ45 Ethernet, 3xUSB, DC input (terminal block), DB26, DB9 DIO, 12V DC Output, 2xLine Out, 2xMic In
System Power Input
Input Voltage DC
9..36 V
Software
Operating System Compatibility
Linux kernel 2.6, Windows 7, Windows Embedded Standard 7, Windows Embedded Standard 2009
Dimensions and weight
Width
260 mm
Height
66.5 mm
Depth
176 mm
Operating Conditions
Operating Temperature
-30..50 °C
Vibration
SSD: 1G @ 5...500 Hz (in operation)
Shock
SSD: 20G
Standards and Certifications
Certifications
CE, FCC Class A
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock
Automotive
e13 Mark
Dimensions
Gross Weight
4 kg
