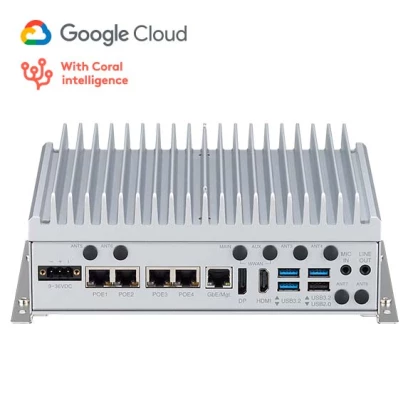

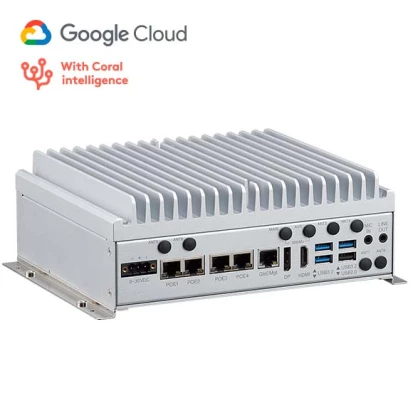

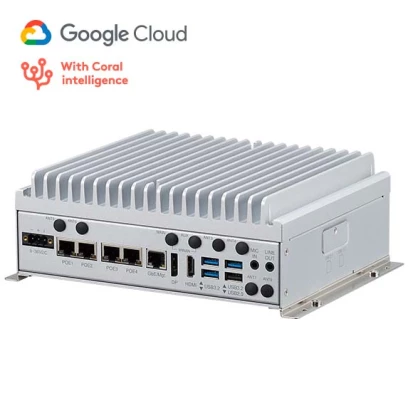

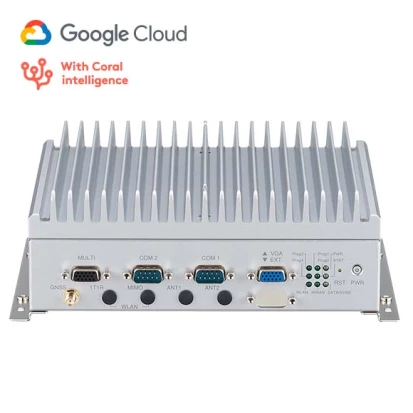

VTC-7260-7GCIoT
NEXCOM
SKU: 80093000
Fanless Vehicle Box-PC, Intel Core i7-1185GRE CPU, 8GB DDR4 ECC RAM, Google Coral TPU, VGA, HDMI, DP, 4x2.5GbE PoE LAN, 1xGbE LAN, 3xUSB 3.2, 1xUSB 2.0, 2xCOM, DB15 (CAN, DIO), GPS, 1x2.5" Bay, 1xMiniPCIe, 1xM.2 Key-B, 1xM.2 Key-E, Audio, 9-36VDC-in
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Tiger Lake
Processor Installed
Intel Core i7-1185GRE
Socket
FCBGA 1449
Max CPU frequency
4.4 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
Yes
Default on Board Memory
8 GB
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DisplayPort, HDMI, VGA
Ethernet
Controller Type
Intel i225IT
Total Ethernet
5
10/100/1000 Mbit/s
1
PoE+ 10/100/1000 Mbit/s
4
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
4
USB 2.0
1
USB v3.x
3
Digital Input-Output
Channels of DIO
8
Industrial Interfaces
CAN Port
1
Drive interfaces
SATA 3
1
M.2
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
4
M.2
3
M.2 Form Factor
2242 M, 2280 M, 2230 E, 3052 B, 3042 B
Mini-PCIe/Mini Card
1
SIM Card slots
Yes, 2, Micro-SIM
Additional Functions
GPS
GPS, GLONASS
LED / Controls
LED
Power LED, WLAN LED, WWAN LED, SSD LED
Controls
On/Off, 1xReset
Connectors
Connectors
2xDB9, DB15 VGA, HDMI, 4xUSB, Mic In, Line Out, Display Port, DC input (terminal block), DB15 CAN Bus, 2xSIM Card Slot
System Power Input
Input Voltage DC
9..36 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
210 mm
Height
173 mm
Depth
75 mm
Operating Conditions
Operating Temperature
-30..60 °C
Humidity
10-95%
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
3.1 kg
Gross Weight
4 kg
