VTC-7260-7C4
AI Telematics Embedded PC with Intel Quad Core CPU, up to 64 GB DDR4 RAM, 4x PoE+, 4x USB, 4x COM, GPIO
Equipped with an 11th Gen Intel Core processor and support for optional Hailo AI expansion cards, the VTC 7260-7C4 represents a versatile member of the class of high-performance vehicle PCs, suited for complex tasks such as image and sensor analysis using neural networks.
For high native performance, the fanless transportation PC VTC 7260-7C4 uses either an Intel Core i5-1145GRE or i7-1185GRE processor from the 11th Gen Tiger Lake embedded segment. These are quad-core CPUs with eight virtual threads, operating at 4.10 GHz and 4.40 GHz respectively in Turbo Boost mode, and using Intel Iris Xe Graphics as a dedicated GPU. The memory can be flexibly upgraded from the standard 8 GB up to 64 GB DDR4 RAM with dual-channel support and ECC error correction. In addition, the VTC 7260-7C4 supports system optimization via extension slots for Mini PCIe with mSATA, M.2 Key M NVMe, and a 2.5" drive bay for maximizing performance, storage capacity, or implementing fault-tolerant redundancy.

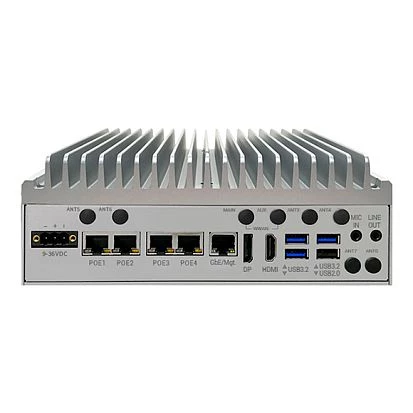

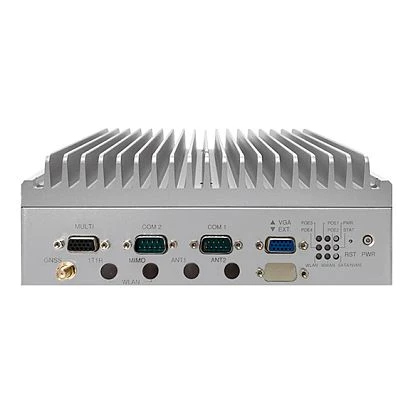

Through a versatile range of interfaces—including four USB ports, two serial COM RS232 ports, two RS232/422/485 ports, 8-bit GPIO, CAN Bus 2.0, Gigabit Ethernet LAN RJ45, and four PoE+ 2.5 Gbps connections—the VTC 7260-7C4 allows direct communication with peripheral devices. For use as an H2M or SCADA interface and for vehicle information display, the rugged embedded PC supports connecting up to three independent displays or touchscreens via HDMI 2.0 a/b, VGA, and DisplayPort (DP), with resolutions up to 4K.
The VTC 7260-7C4 features a fanless design certified according to the international MIL-STD-810G/H standard for sudden shocks and continuous vibrations in road traffic. Operating within a wide temperature range from -20° Celsius to +60° Celsius, the vehicle PC performs reliably in harsh conditions and is also suitable for outdoor installations. Its primary use lies in logistics and AI-supported vehicle systems such as braking and driving assistants. Beyond that, the embedded PC is also well suited for productive deployment in fields such as machine and plant control, telecommunications, or mobile data acquisition and analysis.
