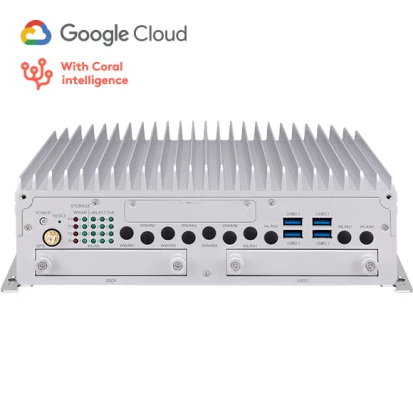

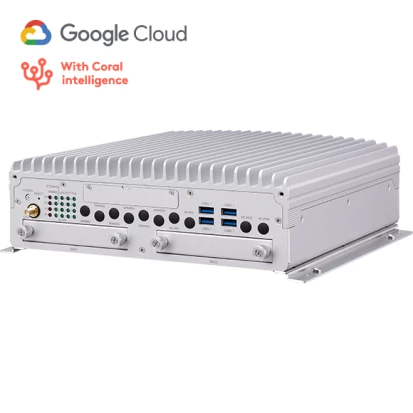

VTC-7251-GCIoT
NEXCOM
SKU: 80092700
Vehicle Telematics Edge AI System, Intel 8th Gen i7-8700T CPU, 8GB (up to 64GB) DDR4 RAM, Google Coral ML TPU, VGA, HDMI, 4xPoE LAN, 1xGbE LAN, 3xCOM, 6xUSB 3.1, DB15 (CAN, 8-bit DIO), GPS, 2x2.5" Bay, 4xMiniPCIe, 1xM.2 Key-B, Audio, 9-36VDC-in
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Coffee Lake
Processor Installed
Intel Core i7-8700T
Socket
LGA1151
CPU Support Type
Core i7
Max CPU frequency
4 GHz
Chipset
Chipset
Intel Q370
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
No
Default on Board Memory
8 GB
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
HDMI, VGA
Ethernet
Controller Type
Intel i210-IT
Total Ethernet
5
10/100/1000 Mbit/s
1
PoE 10/100/1000 Mbit/s
4
Interfaces
COM Total
3
RS-232
2
RS-232/422/485
1
USB Total
6
USB v3.x
6
Digital Input-Output
Channels of DIO
8
Industrial Interfaces
CAN Port
1
Drive interfaces
SATA 3
2
RAID Levels
0, 1
mSATA
2
Storage Cage
Number Of Cage External
2
2.5" Cage External
2
Extension Slots
Total
5
M.2
1
M.2 Form Factor
3042 B
Mini-PCIe/Mini Card
4
Additional Functions
GPS
GPS, GLONASS
LED / Controls
LED
PoE LED, WLAN LED, LAN LED, WWAN LED, SSD LED
Controls
On/Off, 1xReset
Connectors
Connectors
3xDB9, DB15 VGA, HDMI, 5xRJ45 Ethernet, 6xUSB, Mic In, DC input (terminal block), DB15 CAN Bus, 12V DC Output, 2xLine Out
System Power Input
Input Voltage DC
9..36 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
260 mm
Height
83.5 mm
Depth
256 mm
Operating Conditions
Operating Temperature
-30..60 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE, FCC Class A
Automotive
e13 Mark
Dimensions
Net Weight
4.2 kg
Gross Weight
5.2 kg
