VM-521-LR

VM-521-LR

RuggON
SKU: 56373700

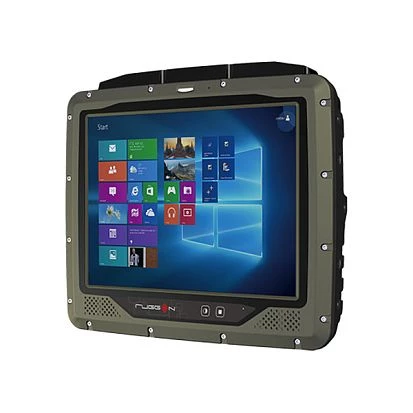

Ultra-Rugged IP66 Vehicle Mount Computer, 10.4" XGA 1024x768, Intel Atom E3827 1.75 Ghz CPU, 4GB DDR3L, 64GB SSD, 2xLAN, 3xCOM, CAN, 2xUSB, 4xDI,4xDO, Wi-Fi, BT, GNSS optional, 2900mAh Bat, -30C to 55C Operation Temperature
Price on request
Available
Available

Construction
Construction Chassis
Rubber
Protection Level of Front Side (Panel)
IP66
Protection Level of Chassis
IP66
Type
Fanless
Display
Diagonal
10.4 "
Maximum resolution
1024x768 Dots
Brightness
1000 Cd/m2
Touch Screen
Touch Screen Type
Resistive
CPU
Processor Installed
Intel Atom E3827
Max CPU frequency
1.75 GHz
Memory
Form-factor
DDR3L
ECC
No
Default on Board Memory
4 GB
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n/ac
Interfaces
COM Total
3
RS-232
3
USB Total
2
Industrial Interfaces
CAN Port
1
Drive interfaces
SD Slots
1
Antenna characteristics
Bluetooth
Yes
Connectors
Connectors
3xDB9, 2xRJ45, 2xUSB, DC Input
System Power Input
Input Voltage DC
18..60 V
Battery
Battery Capacity
3000 mA*h
Software
Operating System Installed
Windows 8.1
Dimensions and weight
Width
276 mm
Height
252 mm
Depth
67.3 mm
Operating Conditions
Operating Temperature
-30..55 °C
Shock
40G,11ms terminal sawtooth
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
3.8 kg
Gross Weight
5 kg
