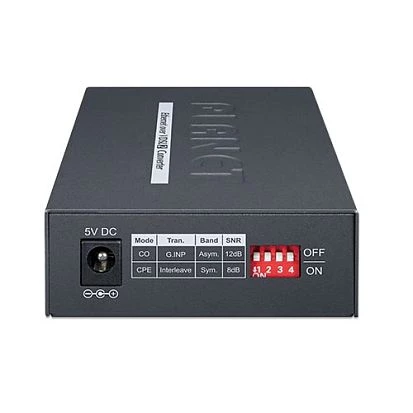

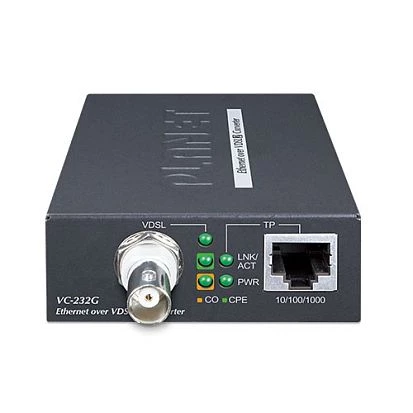

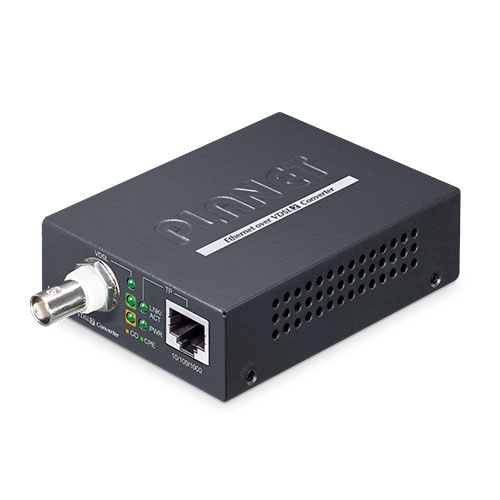

VC-232G

VC-232G

Planet
SKU: 57111100
Ethernet over Coaxial Converter, 1x10/100/1000Base-T RJ45, 1xBNC female Ethernet over Coaxial, Maximum Distance 1400m, 5 VDC, Operating Temperature 0..50 C
Price on request
Available
Available
Ethernet
10/100/1000 Mbit/s
1
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3u for 100BaseT(X)
Operating Conditions
Operating Temperature
0..50 °C
Humidity
5-95%
Construction
Mounting Configuration
Wall
Dimensions and weight
Width
94 mm
Depth
70.3 mm
Height
26.2 mm
Standards and Certifications
Certifications
CE
EMI
FCC Part 15 Subpart B Class A
Dimensions
Net Weight
0.21 kg
Gross Weight
0.6 kg
Ethernet
10/100/1000 Mbit/s
1
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3u for 100BaseT(X)
Operating Conditions
Operating Temperature
0..50 °C
Humidity
5-95%
Construction
Mounting Configuration
Wall
Dimensions and weight
Width
94 mm
Depth
70.3 mm
Height
26.2 mm
Standards and Certifications
Certifications
CE
EMI
FCC Part 15 Subpart B Class A
Dimensions
Net Weight
0.21 kg
Gross Weight
0.6 kg
Ethernet
10/100/1000 Mbit/s
1
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3u for 100BaseT(X)
Operating Conditions
Operating Temperature
0..50 °C
Humidity
5-95%
Construction
Mounting Configuration
Wall
Dimensions and weight
Width
94 mm
Depth
70.3 mm
Height
26.2 mm
Standards and Certifications
Certifications
CE
EMI
FCC Part 15 Subpart B Class A
Dimensions
Net Weight
0.21 kg
Gross Weight
0.6 kg
Ethernet
10/100/1000 Mbit/s
1
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3u for 100BaseT(X)
Operating Conditions
Operating Temperature
0..50 °C
Humidity
5-95%
Construction
Mounting Configuration
Wall
Dimensions and weight
Width
94 mm
Depth
70.3 mm
Height
26.2 mm
Standards and Certifications
Certifications
CE
EMI
FCC Part 15 Subpart B Class A
Dimensions
Net Weight
0.21 kg
Gross Weight
0.6 kg
Documentation
VC-232G-Datasheet.pdf
Documentation
VC-232G-Datasheet.pdf
Documentation
VC-232G-Datasheet.pdf
Documentation
VC-232G-Datasheet.pdf
