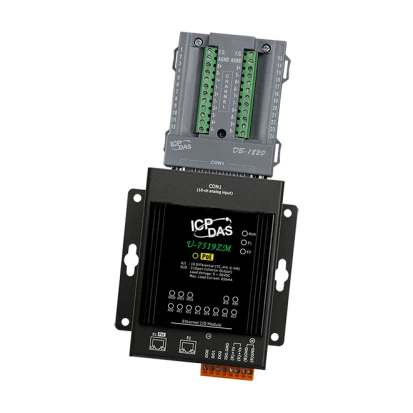

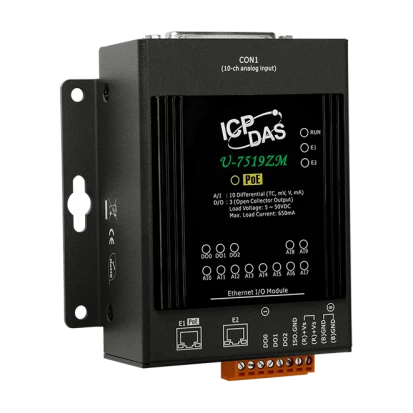

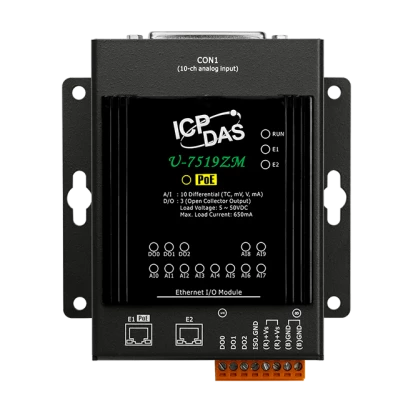

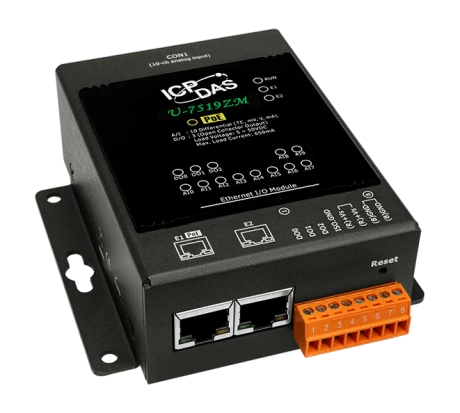

U-7519ZM/S

U-7519ZM/S

ICP DAS
SKU: 10071500
OPC UA I/O Module with 10-channels AI, 3-channels DO and 2-port Ethernet Switch (RoHS), 12-48VDC-in, DB-1820 board
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount
Display
Display Type
LED Display
Ethernet
Total Ethernet
2
10/100 Mbit/s
2
Supported Protocols
Industrial Protocols
MQTT client, OPC UA server, RESTful API
Analog Input
Total channels of analog input
10
Number of Bits
16 Bit
Voltage range
+/-15 mV, +/-50 mV, +/-100 mV, +/-150 mV, +/-500 mV, +/-1 V, +/-2.5 V, +/-5 V, +/-10 V
Current range
0...20 mA, 4...20 mA, -20...+20 mA
Sampling rate
10 Hz
Differential channels
10
Thermocouple
J: -210...+760 °С, K: -270...+1372 °С, T: -270...+400 °С, E: -270...+1000 °С, R: 0...1768 °С, S: 0...1768 °С, B: 0...1820 °С, N: -270...+1300 °С, C: 0...+2320 °С, L: -200...+800 °С, M: -200...+100 °С, L(DIN43710): -200...+900 °С
Digital Output
Total channels of digital output
3
Type
Open collector
Sink/Source
Sink
Output voltage
5~50 V
Max. load current
700 mA
Software
Programming Method
IF-THEN-ELSE Logic Rules
System Power Input
Power over Ethernet (PoE)
PoE
Dimensions and weight
Width
97 mm
Depth
47 mm
Height
114 mm
Standards and Certifications
EMS
IEC 61000-4-2
Dimensions
Net Weight
0.2 kg
Gross Weight
0.35 kg
