PET-2215H-16

PET-2215H-16

ICP DAS
SKU: 11648800

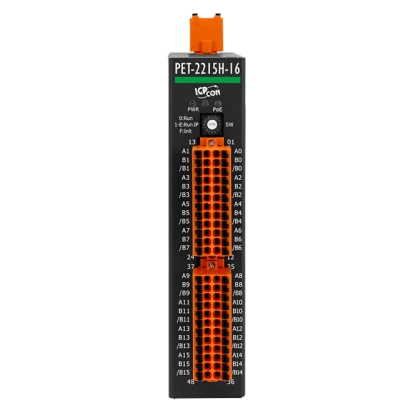

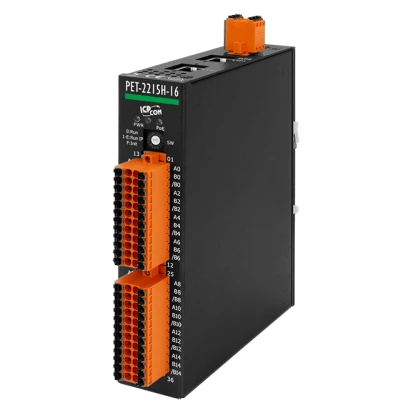

Ethernet I/O Module with 16-ch High Speed RTD Input, 10-48VDC/PoE
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount
Ethernet
Total Ethernet
2
10/100 Mbit/s
2
Supported Protocols
Industrial Protocols
Modbus TCP server, Modbus UDP slave, MQTT client
Analog Input
Total channels of analog input
16
Number of Bits
16 Bit
Sampling rate
90 Hz
Thermal resistance
Pt100, Ni120, Cu50, Cu100
System Power Input
Input Voltage DC
10..48 V
Power over Ethernet (PoE)
IEEE 802.3af, PoE
Dimensions and weight
Width
31 mm
Depth
137 mm
Height
159 mm
Operating Conditions
Operating Temperature
-25..75 °C
Humidity
10-90%
Dimensions
Net Weight
0.2 kg
Gross Weight
0.25 kg
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount
Ethernet
Total Ethernet
2
10/100 Mbit/s
2
Supported Protocols
Industrial Protocols
Modbus TCP server, Modbus UDP slave, MQTT client
Analog Input
Total channels of analog input
16
Number of Bits
16 Bit
Sampling rate
90 Hz
Thermal resistance
Pt100, Ni120, Cu50, Cu100
System Power Input
Input Voltage DC
10..48 V
Power over Ethernet (PoE)
IEEE 802.3af, PoE
Dimensions and weight
Width
31 mm
Depth
137 mm
Height
159 mm
Operating Conditions
Operating Temperature
-25..75 °C
Humidity
10-90%
Dimensions
Net Weight
0.2 kg
Gross Weight
0.25 kg
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount
Ethernet
Total Ethernet
2
10/100 Mbit/s
2
Supported Protocols
Industrial Protocols
Modbus TCP server, Modbus UDP slave, MQTT client
Analog Input
Total channels of analog input
16
Number of Bits
16 Bit
Sampling rate
90 Hz
Thermal resistance
Pt100, Ni120, Cu50, Cu100
System Power Input
Input Voltage DC
10..48 V
Power over Ethernet (PoE)
IEEE 802.3af, PoE
Dimensions and weight
Width
31 mm
Depth
137 mm
Height
159 mm
Operating Conditions
Operating Temperature
-25..75 °C
Humidity
10-90%
Dimensions
Net Weight
0.2 kg
Gross Weight
0.25 kg
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount
Ethernet
Total Ethernet
2
10/100 Mbit/s
2
Supported Protocols
Industrial Protocols
Modbus TCP server, Modbus UDP slave, MQTT client
Analog Input
Total channels of analog input
16
Number of Bits
16 Bit
Sampling rate
90 Hz
Thermal resistance
Pt100, Ni120, Cu50, Cu100
System Power Input
Input Voltage DC
10..48 V
Power over Ethernet (PoE)
IEEE 802.3af, PoE
Dimensions and weight
Width
31 mm
Depth
137 mm
Height
159 mm
Operating Conditions
Operating Temperature
-25..75 °C
Humidity
10-90%
Dimensions
Net Weight
0.2 kg
Gross Weight
0.25 kg
Documentation
(P)ET-2215H_(P)ET-2215H-16 Datasheet ET-2200 User Manual
Software
eSearch Utility
Documentation
(P)ET-2215H_(P)ET-2215H-16 Datasheet ET-2200 User Manual
Software
eSearch Utility
Documentation
(P)ET-2215H_(P)ET-2215H-16 Datasheet ET-2200 User Manual
Software
eSearch Utility
Documentation
(P)ET-2215H_(P)ET-2215H-16 Datasheet ET-2200 User Manual
Software
eSearch Utility

Get a Quote

PET-2215H-16
ICP DAS
SKU: 11648800
PET-2215H-16
PET-2215H-16
PET-2215H-16
PET-2215H-16
