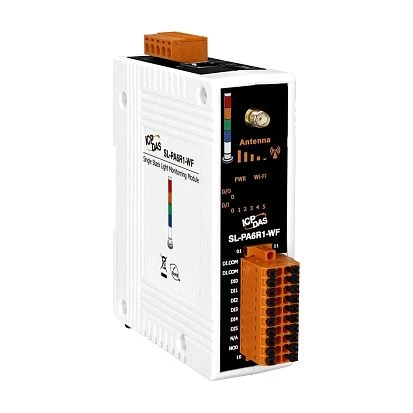

SL-PA6R1-WF

SL-PA6R1-WF

ICP DAS
SKU: 08110300
I/O Module with 6-channel Digital Input AC and 1 channel Relay Output with RS-485/Ethernet/Wi-Fi Interfaces and PoE for DC Stack Lights
Price on request
Available
Available

Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Ethernet
Total Ethernet
1
10/100 Mbit/s
1
Interfaces
COM Total
1
RS-485
1
Wi-Fi
Wi-Fi Standard
802.11b/g/n
Additional Functions
Watchdog timer type
Hardware, Software
Supported Protocols
Industrial Protocols
Modbus TCP server, Modbus RTU slave, MQTT client
Digital Input
Total channels of digital input
6
Type
Wet contact
Level of Logic "0"
0~4 V
Level of Logic "1"
80~240 V
Sink/Source
Sink, Source
Isolation of Digital Input
3750 V
Digital Output
Total channels of digital output
1
Contact rating of relay (Form A)
5A@250V AC, 5A@30V DC
System Power Input
Input Voltage DC
10..48 V
Power over Ethernet (PoE)
PoE
Dimensions and weight
Width
33 mm
Depth
108 mm
Height
127 mm
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
EMS
IEC 61000-4-2, IEC 61000-4-4
Dimensions
Gross Weight
0.35 kg
