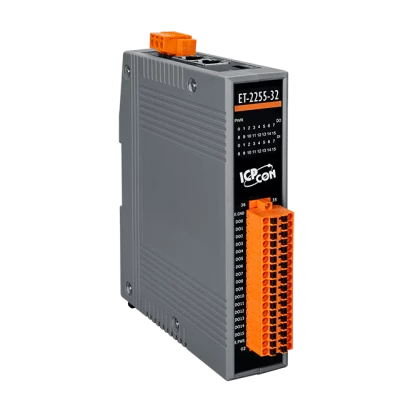

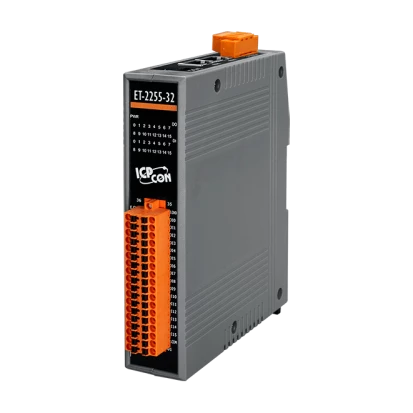

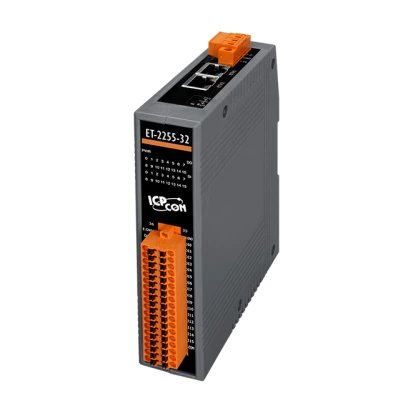

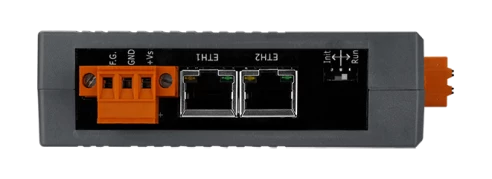

ET-2255-32
ICP DAS
SKU: 11648000
Ethernet I/O Module with 2-port Ethernet Switch, 16-ch DI, 16-ch DO (Sink) (RoHS), 10-48VDC-in
Price on request
Available
Available
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Ethernet
Total Ethernet
2
10/100 Mbit/s
2
Supported Protocols
Industrial Protocols
Modbus TCP server, Modbus UDP slave, MQTT client
Digital Input
Total channels of digital input
16
Type
Dry contact, Wet contact
Level of Logic "0"
0~1 V
Level of Logic "1"
5~50 V
Sink/Source
Dry: Source, Wet: Sink/Source
Signal Type
Frequency
Counter capacity
32 Bit
Max frequency
2.5 kHz
Digital Output
Total channels of digital output
16
Type
Open collector
Sink/Source
Sink
Output voltage
3.5~50 V
Max. load current
500 mA
System Power Input
Input Voltage DC
10..48 V
Dimensions and weight
Width
31 mm
Depth
129 mm
Height
157 mm
Operating Conditions
Operating Temperature
-25..75 °C
Humidity
10-90%
Dimensions
Net Weight
0.2 kg
Gross Weight
0.25 kg
