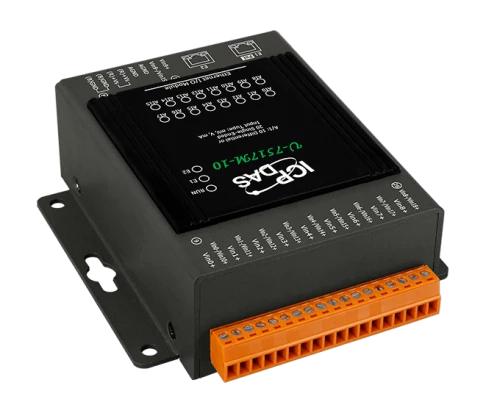

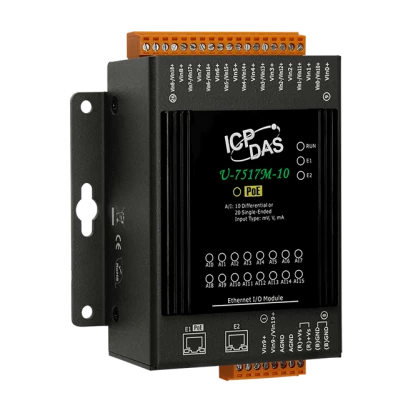

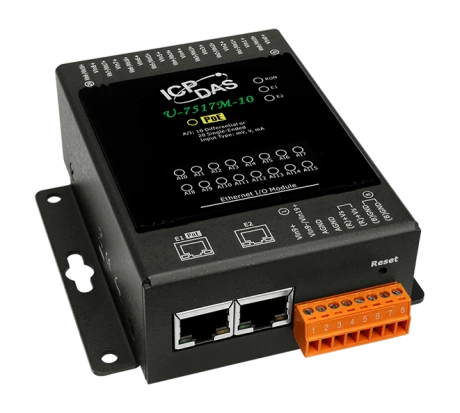

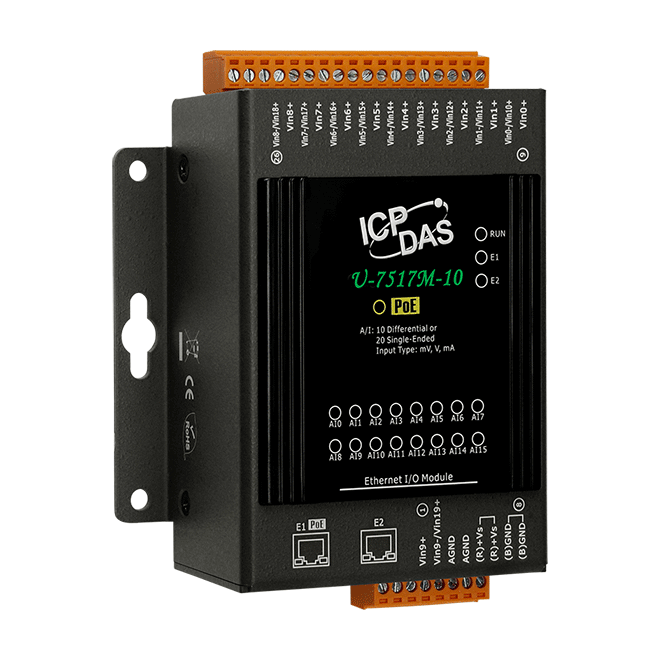

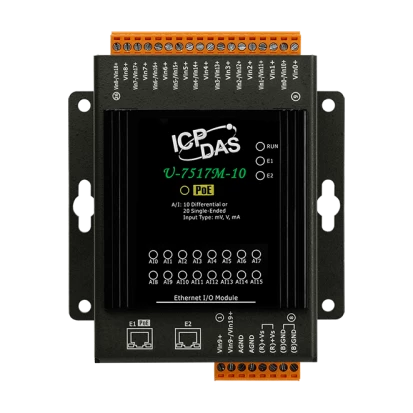

U-7517M-10
ICP DAS
SKU: 10071400
OPC UA I/O Module with 10/20-channels AI and 2-port Ethernet Switch (RoHS), 12-48VDC-in
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount
Display
Display Type
LED Display
Ethernet
Total Ethernet
2
10/100 Mbit/s
2
Additional Functions
Watchdog timer type
Software
Supported Protocols
Industrial Protocols
MQTT client, OPC UA server, RESTful API
Analog Input
Total channels of analog input
20
Number of Bits
16 Bit
Voltage range
+/-150 mV, +/-500 mV, +/-1 V, +/-5 V, +/-10 V
Current range
0...20 mA, 4...20 mA, -20...+20 mA
Sampling rate
10 Hz
Single-Ended channels
20
Differential channels
10
Software
Programming Method
IF-THEN-ELSE Logic Rules
System Power Input
Power over Ethernet (PoE)
PoE
Dimensions and weight
Width
97 mm
Depth
47 mm
Height
120 mm
Operating Conditions
Operating Temperature
-25..75 °C
Humidity
10-90%
Dimensions
Net Weight
0.2 kg
Gross Weight
0.35 kg
