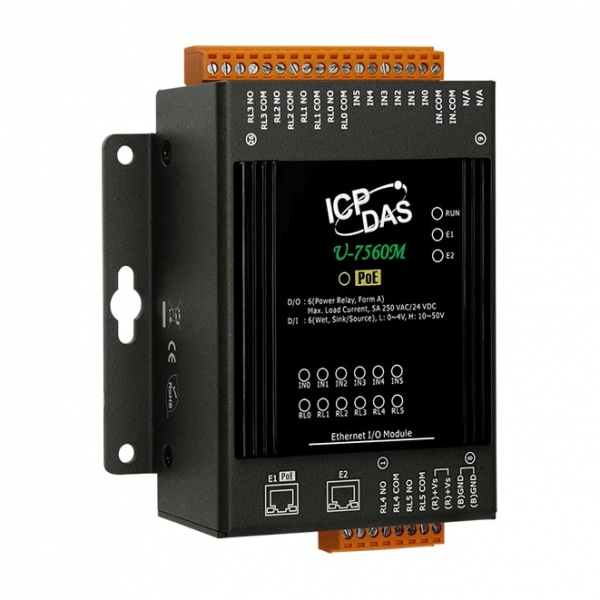

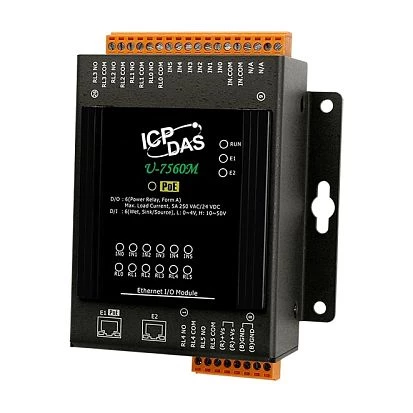

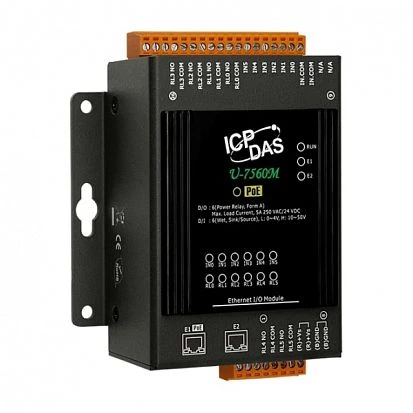

U-7560M
ICP DAS
SKU: 09374800
OPC UA I/O Module with 6-ch DI, 6-ch Relay 5 A @ 250 VAC/24 VDC, and 2-port Ethernet Switch (RoHS)
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Wall
Ethernet
10/100 Mbit/s
2
Supported Protocols
Industrial Protocols
MQTT client
Digital Input
Total channels of digital input
6
Type
Wet contact
Level of Logic "0"
0~4 V
Level of Logic "1"
10~50 V
Sink/Source
Sink, Source
Counter
50Hz, 16 bit
Digital Output
Total channels of digital output
6
Type
Electromagnitic relay
Contact rating of relay (Form A)
5A@250V AC, 5A@28V DC
System Power Input
Input Voltage DC
12..48 V
Power over Ethernet (PoE)
PoE
Dimensions and weight
Width
92 mm
Depth
42 mm
Height
120 mm
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
EMS
IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5
Dimensions
Net Weight
0.2 kg
Gross Weight
0.35 kg
