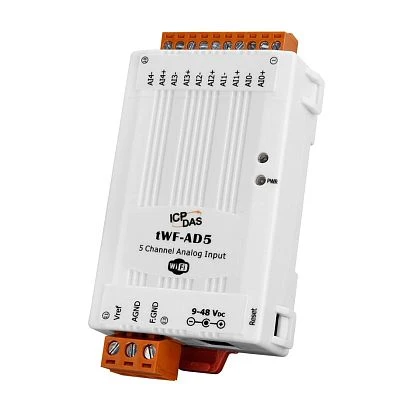

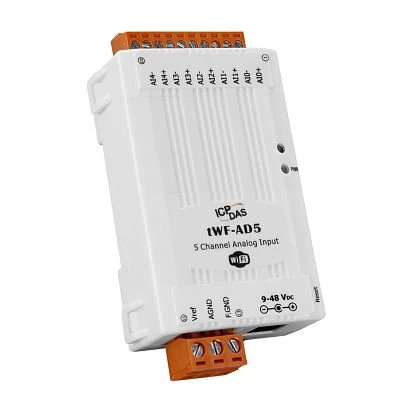

tWF-AD5
ICP DAS
SKU: 08884100
5-channel Analog Input Module Wi-Fi 2.4G IEEE 802.11 b/g/n (RoHS)
Price on request
Available
Available
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Wi-Fi
Wi-Fi Standard
802.11b/g/n
Quantity of Wi-Fi
1
Supported Protocols
Industrial Protocols
Modbus TCP server
Analog Input
Total channels of analog input
5
Number of Bits
14 Bit
Voltage range
+/-1.25 V, +/-2.5 V, +/-5 V, +/-10 V
Sampling rate
14 Hz
Differential channels
5
System Power Input
Input Voltage DC
9..48 V
Dimensions and weight
Width
52 mm
Depth
27 mm
Height
97 mm
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Gross Weight
0.5 kg
