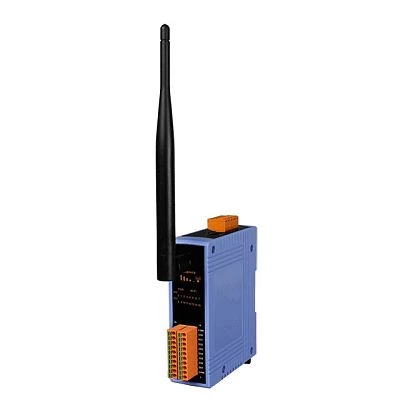

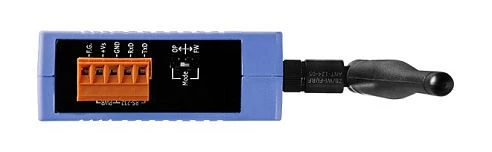

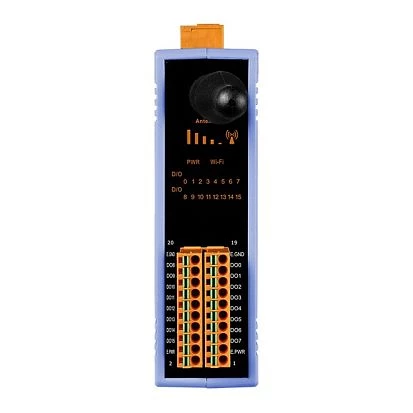

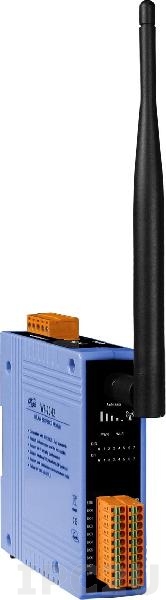

WF-2042

ICP DAS
SKU: 06653300
Wi-Fi I/O Module with 16-channel Isolated Digital Output, 5 dBi, IEEE 802.11b/g
Price on request
Available on order
Available on order
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Wi-Fi
Wi-Fi Standard
802.11b/g
Quantity of Wi-Fi
1
Supported Protocols
Industrial Protocols
Modbus TCP server, Modbus UDP slave
Digital Output
Total channels of digital output
16
Type
Open collector
Sink/Source
Sink
Output voltage
3.5~50 V
Max. load current
700 mA
Connectors
Connectors
Screw Terminal
System Power Input
Input Voltage DC
10..30 V
Dimensions and weight
Width
33 mm
Depth
106 mm
Height
120 mm
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Gross Weight
0.35 kg
