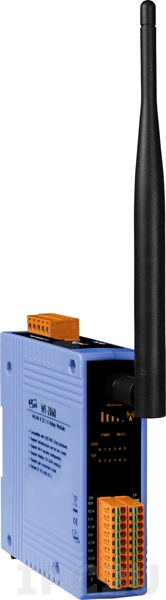

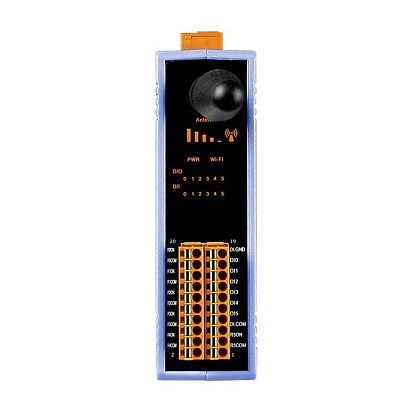

WF-2060
ICP DAS
SKU: 06133300
Wi-Fi I/O Module with 6-channel Isolated Digital Input and 6-channel Relay Output (RoHS)
Price on request
Available
Available
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Wi-Fi
Wi-Fi Standard
802.11b/g
Quantity of Wi-Fi
1
Supported Protocols
Industrial Protocols
Modbus TCP server, Modbus UDP slave
Digital Input
Total channels of digital input
6
Type
Dry contact, Wet contact
Level of Logic "0"
0~4 V
Level of Logic "1"
10~50 V
Sink/Source
Dry: Source, Wet: Sink/Source
Isolation of Digital Input
3750 V
Counter
10KHz, 32 bit
Digital Output
Total channels of digital output
6
Type
Electromagnitic relay
Relay (Form A)
6
Contact rating of relay (Form A)
5A@250V AC, 5A@30V DC
Connectors
Connectors
Screw Terminal
System Power Input
Input Voltage DC
10..30 V
Dimensions and weight
Width
33 mm
Depth
90 mm
Height
110 mm
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Net Weight
0.35 kg
Gross Weight
0.35 kg
