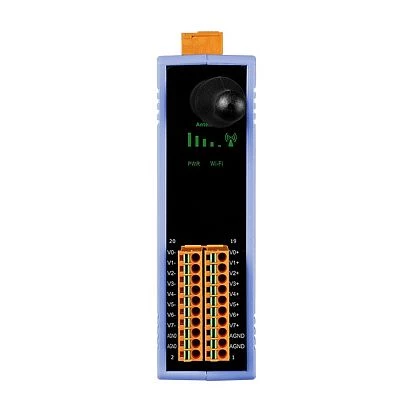

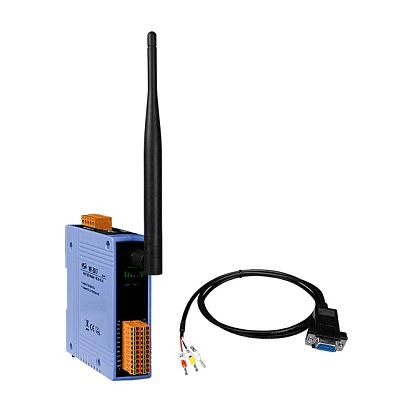

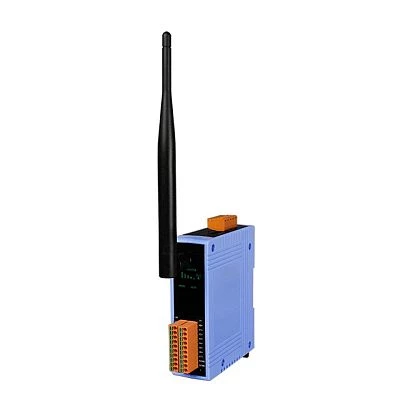

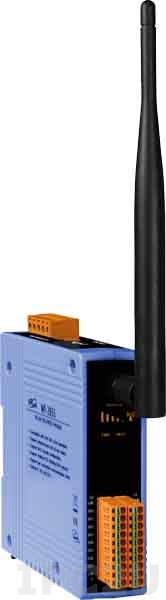

WF-2017
ICP DAS
SKU: 06541600
8-channel Differential/16-channel Single-Ended Analog Input Wi-Fi I/O Module (RoHS)
Price on request
Available on order
Available on order
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Wi-Fi
Wi-Fi Standard
802.11b/g
Quantity of Wi-Fi
1
Supported Protocols
Industrial Protocols
Modbus TCP server, Modbus UDP slave
Analog Input
Total channels of analog input
16
Number of Bits
16 Bit
Voltage range
+/-150 mV, +/-500 mV, +/-1 V, +/-5 V, +/-10 V
Current range
0...20 mA, 4...20 mA, -20...+20 mA
Sampling rate
10 Hz
Single-Ended channels
16
Differential channels
8
Connectors
Connectors
Screw Terminal
System Power Input
Input Voltage DC
10..30 V
Dimensions and weight
Width
33 mm
Depth
106 mm
Height
120 mm
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Gross Weight
0.35 kg
