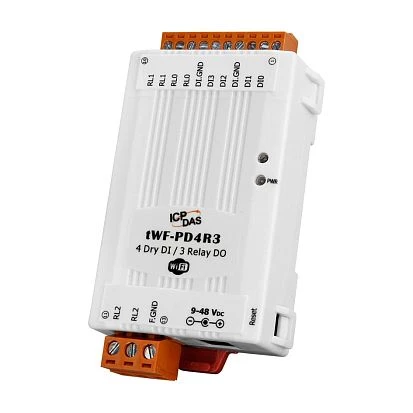

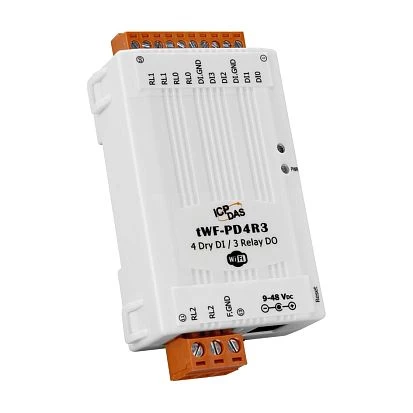

tWF-PD4R3

tWF-PD4R3

ICP DAS
SKU: 08334500
4-channel Isolated Digital Input and 3-channel Relay Output Module Wi-Fi 2.4G IEEE 802.11 b/g/n (RoHS)
Price on request
Available
Available
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Wi-Fi
Wi-Fi Standard
802.11b/g/n
Quantity of Wi-Fi
1
Supported Protocols
Industrial Protocols
Modbus TCP server
Digital Input
Total channels of digital input
4
Type
Dry contact
Sink/Source
Sink
Isolation of Digital Input
3750 V
Counter
20Hz, 32 bit
Digital Output
Total channels of digital output
3
Type
Electromagnitic relay
Relay (Form A)
3
Contact rating of relay (Form A)
5A@250V AC, 5A@30V DC
System Power Input
Input Voltage DC
9..48 V
Dimensions and weight
Width
52 mm
Depth
27 mm
Height
97 mm
Operating Conditions
Operating Temperature
-20..75 °C
Standards and Certifications
EMS
IEC 61000-4-2, IEC 61000-4-4
Dimensions
Gross Weight
0.5 kg
