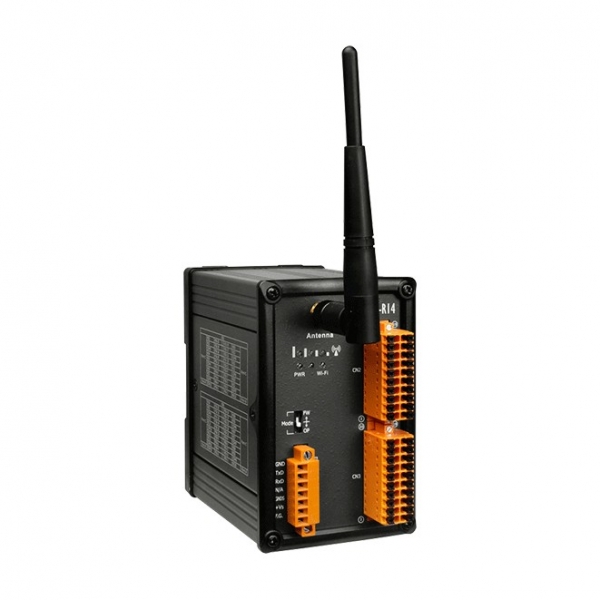

WFM-R14

ICP DAS
SKU: 07051300
2-channel Form A Power Relay Output and 12-channel Form C Power Relay Output Wi-Fi I/O Module with Metal Case (RoHS)
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount
Interfaces
RS-232
1
Wi-Fi
Wi-Fi Standard
802.11b/g
Quantity of Wi-Fi
1
Supported Protocols
Industrial Protocols
Modbus TCP server, Modbus UDP slave
Digital Output
Total channels of digital output
14
Type
Electromagnitic relay
Relay (Form A)
2
Contact rating of relay (Form A)
5A@250V AC, 5A@30V DC
Relay (Form C)
12
Contact rating of relay (Form C)
6A@250V AC, 6A@30V DC
Connectors
Connectors
Screw Terminal
System Power Input
Input Voltage DC
10..30 V
Dimensions and weight
Width
33 mm
Depth
95 mm
Height
120 mm
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Gross Weight
0.5 kg
